Unifilar Cantina DWG Block for AutoCAD

Unifilar Cantina DWG Block for AutoCAD

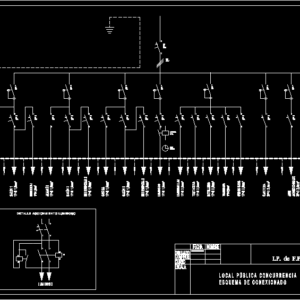

Electric scheme bar installation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Drawn, date, first name, Check, course, scale, Of f.p. Alicante, Replaces:, replaced by:, emergency, Take bars, applications, Luminous drive, Public connection concurrence, schedule, Juan josé cuevas monteagudo

Raw text data extracted from CAD file:

1P+N 16A "C" 6kA 1 2 1P+N 16A "C" 6kA 1 2 1P+N 16A "C" 6kA 1 2 4P 25A 30mA 4P 25A 30mA 4P 25A 30mA 4P 25A 30mA 4P 25A 30mA 1P+N 10A "C" 6kA 1 2 4P 25A 30mA 1P+N 10A "C" 6kA 1 2 4P 25A 30mA DIBUJADO FECHA \W1.72938; NOMBRE COMPROB. CURSO ESCALA \W2.00000x;I.P. de F.P. ALICANTE Sustituye a: Sustituido por: \W1;1 2 2P 25A 30mA 3P+N 63A "D" 10kA 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 10A "C" 6kA 1 2 1P+N 16A "C" 6kA 1 2 2P 25A 30mA 2P 25A 30mA 4P 25A 30mA 3P+N 4x16mm² \T1.50000;ASEO \T1.50000;1P+N 1,5mm² EMERGENCIA 1 1P+N 1,5mm² \T1.50000;ALMACÉN \T1.50000;1P+N 1,5mm² \T1.50000;EMERGENCIAS 2 \T1.50000;1P+N 1,5mm² \T1.50000;COCINA \T1.50000;1P+N 1,5mm² \T1.50000;SALÓN 3 \T1.50000;1P+N 1,5mm² \T1.50000;EMERGENCIA 3 \T1.50000;1P+N 1,5mm² \T1.50000;LUMINOSO \T1.50000;1P+N 1,5mm² \T1.50000;LAVAVAJILLAS \T1.50000;1P+N 2,5mm² \T1.50000;SALÓN 2 \T1.50000;1P+N 1,5mm² \T1.50000;SALÓN 1 \T1.50000;1P+N 1,5mm² \T1.50000;TOSTADORA \T1.50000;1P+N 2,5mm² \T1.50000;BOTELLERO \T1.50000;1P+N 2,5mm² TOMAS BARRA 1P+N 2,5mm² \T1.50000;OTROS USOS \T1.50000;1P+N 2,5mm² \T1.50000;CAFETERA \T1.50000;3P+N 2,5mm² \T1.50000;AIRE \T1.50000;ACONDICIONADO \T1.50000;3P+N 2,5mm² \T1.50000;CÁMARA \T1.50000;FRIGORÍFICA \T1.50000;3P+N 2,5mm² \T1.50000;COCINA \T1.50000;ELÉCTRICA \T1.50000;3P+N 6mm² \W6.99464; \W1.80000x;\T1.40000;DETALLE ACCIONMIENTO LUMINOSO 3 4 3 4 1 2 1 2 A1 A2 KM A1 A2 \T2.00000;LOCAL PÚBLICA CONCURRENCIA \T2.00000;ESQUEMA DE CONEXIONADO \W1.87309; \T1.50000;LUMINOSO \T1.5;RELOJ HORARIO \T1.5;CONTACTOR 2P 25A JUAN JOSÉ CUEVAS MONTEAGUDO
