Union Wall And Column DWG Block for AutoCAD

Union Wall And Column DWG Block for AutoCAD

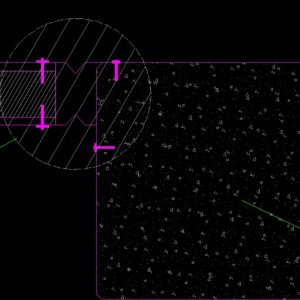

Connection concrete and bricks wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Galvanized sheet fuller lime. Folded according to design, Screw to fix sheet in column wall, Flat reinforced concrete column, Common red wall seated with mortar cement sand proportion, Flattened mortar proportion, detail, Finished concrete repison, Apparent concrete column, Tubular profile base sleeve, Thick clear glass, Polyurethane gasket, Red brick wall annealed from, Vinyl junk, Vaguet with pija, Column connection with red wall of annealed, Flat mortar, Galvanized sheet bellows lime., Common red wall wall, Reinforced concrete column, see detail

Raw text data extracted from CAD file:

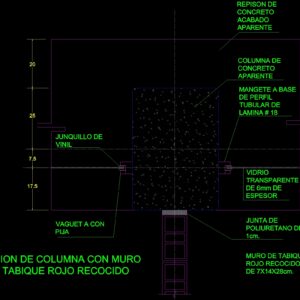

0.03 0.03 0.05 0.10 0.05 0.075 0.225 FULLER DE LAMINA GALVANIZADA CAL. 18 DOBLADA SEGUN DISEÑO TORNILLO DE 1 1/2"X 1/4" PARA FIJAR LAMINA EN MURO Y COLUMNA COLUMNA DE CONCRETO ARMADO (VER PLANO ESTRUCTURAL) TABIQUE ROJO COMUN ASENTADO CON MORTERO CEMENTO ARENA PROPORCION 1:4 APLANADO DE MORTERO CEMENTO-ARENA PROPORCION 1:5 0.03 0.03 0.05 0.10 0.05 0.075 0.225 DETALLE 1 17.5 7.5 25 20 17.5 7.5 25 20 REPISON DE CONCRETO ACABADO APARENTE COLUMNA DE CONCRETO APARENTE MANGETE A BASE DE PERFIL TUBULAR DE LAMINA # 18 VIDRIO TRANSPARENTE DE 6mm DE ESPESOR JUNTA DE POLIURETANO DE 1cm. MURO DE TABIQUE ROJO RECOCIDO DE 7X14X28cm. JUNQUILLO DE VINIL VAGUET A CON PIJA UNION DE COLUMNA CON MURO DE TABIQUE ROJO RECOCIDO APLANADO DE MORTERO CEMENTO-ARENA FUELLE DE LAMINA GALVANIZADA CAL. 18 MURO DE TABIQUE ROJO COMUN COLUMNA DE CONCRETO ARMADO VER DETALLE 1

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass
Measurement Units
Footprint Area
Building Features
Tags	autocad, béton armé, block, bricks, column, concrete, connection, DWG, formwork, reinforced concrete, schalung, stahlbeton, union, wall
