Urinal With Airflow Meter DWG Block for AutoCAD

Urinal With Airflow Meter DWG Block for AutoCAD

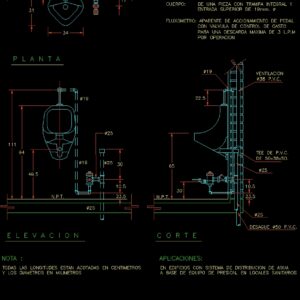

Urinal with pedal airflow meter

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

p.v.c. tee, p.v.c., ventilation, material:, urinal:, Specifications., by operation, White., for a maximum download of l.p.m., fluxometer: apparent pedal drive, Body: one piece with integral trap, top entry of, with cost control valve, mod. Niagara, ideal white standard, vitrified porcelain color, drain p.v.c., n.p.t., Applications:, in buildings with water distribution system, base of equipment of in sanitary premises, note, n.p.t., the diameters in millimeters, all lengths are bounded in centimeters, urinal detail with pedal fluxometer

Raw text data extracted from CAD file:

TEE DE P.V.C. d38 P.V.C. VENTILACION MATERIAL: MINGITORIO: ESPECIFICACIONES. d19 22.5 POR OPERACION BLANCO. PARA UNA DESCARGA MAXIMA DE 3 L.P.M FLUXOMETRO: APARENTE DE ACCIONAMIENTO DE PEDAL CUERPO: DE UNA PIEZA CON TRAMPA INTEGRAL Y ENTRADA SUPERIOR DE 19mm. d CON VALVULA DE CONTROL DE GASTO MOD. NIAGARA 01-247 BLANCO IDEAL STANDAR PORCELANA VITRIFICADA COLOR d25 d25 DE 50x38x50. DESAGUE d50 P.V.C. SIN/ESC. 30 N.P.T. C O R T E 65 APLICACIONES: 10.5 23.5 EN EDIFICIOS CON SISTEMA DE DISTRIBUCION DE AGUA A BASE DE EQUIPO DE PRESION, EN LOCALES SANITARIOS 12 d19 33 d25 17 34 d19 d25 d50 31 94 10 111 P L A N T A 10.5 23.5 30 d25 d19 d25 49.5 NOTA : N.P.T. Y LOS DIAMETROS EN MILIMETROS E L E V A C I O N TODAS LAS LONGITUDES ESTAN ACOTADAS EN CENTIMETROS DETALLE DE MINGITORIO CON FLUXOMETRO DE PEDAL

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	airflow, autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, meter, provision, urinal, wasser bestimmung, water
