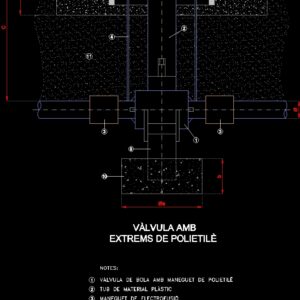

Valve of gas with polyethylene ends according Repsol Gas

Drawing labels, details, and other text information extracted from the CAD file (Translated from Catalan):

notes:, Steel tube with anticorrosive coating, reabsorbed of compacted crumb sand, Concrete in mass of, chest type dimension, male steel plug of, steel ball valve, electrofusion sleeve, tube of plastic material, Ball valve with polyethylene sleeve, tube stopper keeps, valve support, ends of polyethylene, valve with

Raw text data extracted from CAD file:

b da 3,5cm. C d 6cm. -145.3544380253337 11 10 9 8 7 6 5 4 3 2 1 NOTES: TUB D'ACER 1/2" AMB RECOBRIMENT ANTICORROSIU REOMPLERT D'ARENA DE MIGA COMPACTADA FORMIGÓ EN MASA DE fck=175kgr/cm. ARQUETA TIPUS DE DIMENSIÓ S/VÀLVULA TAP MASCLE D' ACER DE 1/2" VÀLVULA DE BOLA D'ACER DE 1/2" MANEGUET DE ELECTROFUSIÓ TUB DE MATERIAL PLÀSTIC VÀLVULA DE BOLA AMB MANEGUET DE POLIETILÈ TAP DE TUB GUARDA SUPORT PER A VÀLVULA 2 -145.3544380253337 -145.3544380253337 EXTREMS DE POLIETILÈ VÀLVULA AMB 10 9 3 1 3 -145.3544380253337 -145.3544380253337 -145.3544380253337 11 6 4 5 7 2 5 7 8

Language	N/A
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Plastic, Steel
