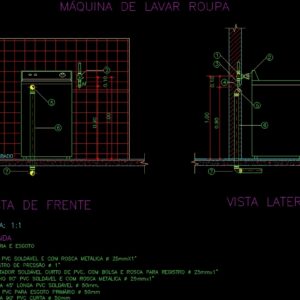

Washer clothes installation with references

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

side view, front view, finished floor, scale:, finished floor, washing machine, cold sewage pvc weldable with metal weldable pressure thread short of with pouch thread for welding pvc record with metal thread long pvc weldable pvc pipe for primary sewage pvc short

Raw text data extracted from CAD file:

\A1;0.10 \A1;0.90 \A1;1.00 \A1;1.00 \A1;0.10 \A1;0.90 VISTA LATERAL VISTA DE FRENTE PISO ACABADO 5 7 ESCALA: 1:1 6 AF 7 5 2 1 3 6 PISO ACABADO 2 4 MÁQUINA DE LAVAR ROUPA 0.10 0.90 1.00 1.00 0.10 0.90 \C6;LEGENDA \H0.04;\C3;ÁGUA FRIA E ESGOTO 1-LUVA PVC SOLDÁVEL E COM ROSCA METÁLICA d 25mmX1" 2-REGISTRO DE PRESSÃO d 1" 3-ADAPTADOR SOLDÁVEL CURTO DE PVC, COM BOLSA E ROSCA PARA REGISTRO d 25mmx1" 4-JOLEHO 90° PVC SOLDÁVEL E COM ROSCA METÁLICA d 25mmx1" 5-CURVA 45° LONGA PVC SOLDÁVEL d 50mm. 6 TUBO PVC PARA ESGOTO PRIMÁRIO d 50mm 7-CURVA 90° PVC CURTA d 50mm

Language	Portuguese
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
