Washer DWG Section for AutoCAD

Washer DWG Section for AutoCAD

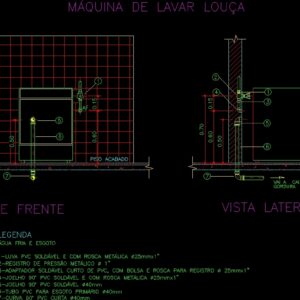

Installation of washer – Details – Sections with references

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

scale:, front view, finished floor, finished floor, side view, go box of, fat, dishwasher, cold sewage pvc weldable with metallic thread of metallic pressure weldable short of with pouch thread for registration pvc weldable with metal thread pvc weldable pvc for primary sewage pvc short

Raw text data extracted from CAD file:

\A1;0.50 \A1;0.15 \A1;0.60 \A1;0.50 \A1;0.60 \A1;0.15 \A1;0.70 ESCALA: 1:1 VISTA DE FRENTE AF 7 6 5 PISO ACABADO 1 PISO ACABADO VISTA LATERAL 7 4 2 VAI A CAIXA DE GORDURA 6 1 5 3 MÁQUINA DE LAVAR LOUÇA \C4;LEGENDA \H0.04;\C3;ÁGUA FRIA E ESGOTO 1-LUVA PVC SOLDÁVEL E COM ROSCA METÁLICA d25mmx1" 2-REGISTRO DE PRESSÃO METÁLICO d 1" 3-ADAPTADOR SOLDÁVEL CURTO DE PVC, COM BOLSA E ROSCA PARA REGISTRO d 25mmx1" 4-JOELHO 90° PVC SOLDÁVEL E COM ROSCA METÁLICA d25mmx1" 5-JOELHO 90° PVC SOLDÁVEL d40mm 6-TUBO PVC PARA ESGOTO PRIMÁRIO d40mm 7-CURVA 90° PVC CURTA d40mm 0.50 0.15 0.60 0.50 0.60 0.15 0.70

Language	Portuguese
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, details, DWG, einrichtungen, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, references, section, sections, washer, wasser bestimmung, water
