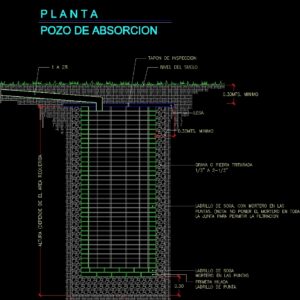

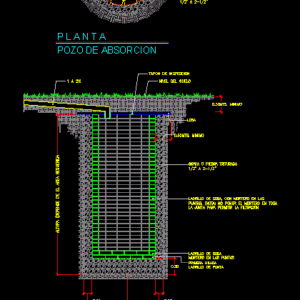

Well Absorption DWG Detail for AutoCAD

Well Absorption DWG Detail for AutoCAD

Details – specifications – sizing

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

from the well, Brick with mortar on the ends. Do not put the mortar around the joint to allow filtration, Napa freatica, Absorption well, Brick mortar at the ends, First row spiked brick, Gravel crushed stone, minimum, slab, minimum, Inspection plug, Ground level, Height of required area, Gravel crushed stone, Well diameter

Raw text data extracted from CAD file:

\A1;0.30 \A1;0.15 \A1;0.15 \A1;1.50 \A1;DIAMTRO DEL POZO 5 5 5 5 LADRILLO DE SOGA, CON MORTERO EN LAS PUNTAS. (NOTA: NO PONER EL MORTERO EN TODA LA JUNTA PARA PERMITIR LA FILTRACION NAPA FREATICA P L A N T A POZO DE ABSORCION POZO DE ABSORCION S E C C I O N A-A' LADRILLO DE SOGA MORTERO EN LAS PUNTAS PRIMERA HILADA LADRILLO DE PUNTA GRAVA O PIEDRA TRITURADA 1/2" A 2-1/2" 0.30MTS. MINIMO LOSA 0.30MTS. MINIMO TAPON DE INSPECCION NIVEL DEL SUELO 1 A 2% ALTURA (DEPENDE DE EL AREA REQUERIDA A S S A' GRAVA O PIEDRA TRITURADA 1/2" A 2-1/2" DIAMTRO DEL POZO

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	absorption, autocad, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, sizing, specifications, wasser bestimmung, water
