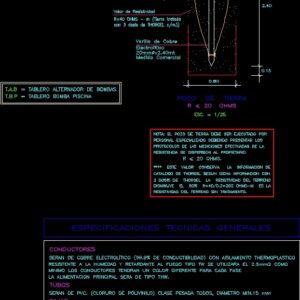

DETAILS AND SPECIFICATIONS ELECTRICAL GROUND

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

gang square, boxes, tubes, drivers, according to detail attached, power outlets, board, p.r. breaking power, is indicated in the map., earth well, accessories, the outlets will be grounded without it according to, will be of pvc. of heavy class mm diameter, minimum drivers will have a different color for each phase, will be electrolytic copper with thermoplastic insulation, resistant fire retardant moisture type tw will be used as, your B. to be square with lid, larger pass boxes will be heavy in thickness of iron., will be of iron of galvanized of thickness of minimum plate for, the boxes for outlet of receptacles where more than, for outputs such as, will be similar those of the magic series of ticino with anodized aluminum plates, according to technical specifications, the switches will be, i.tm. thermomagnetic switch, main power will be thw type., general technical specifications, resistivity of the land without treatment., this value retains the information of, catalog of thorgel according to this information with, decrease is the, dose of thorgel the resistivity of the terrain, drivers, bare copper, connector, of pressure, concrete cover, with, angle mark, see plant, compacted, sieved earth, thorgel, with doses of, with doses of thorgel, electrolytic, commercial measure, copper rod, ohms treated, protocols of the measurements made by the, dispersion resistance to the owner., ohms., specialized personnel should present the, note: the earth well must be executed by, resistivity value, ohms, earth well, esc., smooth iron, wing of, t.a.b, pump alternator board, pool pump board, tb

Raw text data extracted from CAD file:

CUADRADA DE 1 GANG. CAJAS TUBOS CONDUCTORES SEGUN DETALLE ADJUNTO TOMACORRIENTES TABLERO P.R. = PODER DE RUPTURA SE INDICA EN EL PLANO. POZO DE TIERRA ACCESORIOS LOS TOMACORRIENTES SERÁN DE 2x15A - 220V CON TOMA A TIERRA O SIN ELLA SEGUN SERAN DE PVC. (CLORURO DE POLIVINILO) CLASE PESADA TODOS, DIAMETRO MIN.15 mm MINIMO LOS CONDUCTORES TENDRAN UN COLOR DIFERENTE PARA CADA FASE SERAN DE COBRE ELECTROLÍTICO (99.9% DE CONDUCTIBILIDAD) CON AISLAMIENTO THERMOPLASTICO RESISTENTE A LA HUMEDAD Y RETARDANTE AL FUEGO TIPO TW SE UTILIZARA EL 2.5mm2 COMO 2 TUB. DE 15mmd PVC-P SERAN CUADRADAS DE 100x100x50 CON TAPA CAJAS DE PASE MAYORES DE 300x300 SERAN PESADAS 2.4mm DE ESPESOR DE PLANCHA. SERAN DE FIERRO GALVANIZADO 1.59mm DE ESPESOR DE PLANCHA MINIMO , PARA LAS CAJAS PARA SALIDA DE TOMACORRIENTES DONDE CONCURREN MAS DE PARA LAS SALIDAS TALES COMO INTERRUPTORES, SERAN SIMILARES A LOS DE LA SERIE MAGIC DE TICINO CON PLACAS DE ALUMINIO ANODIZADO SEGUN ESPECIFICACIONES TECNICAS ADJUNTAS : LOS INTERRUPTORES SERAN DE 10A 220V I.TM. = INTERRUPTOR TERMOMAGNETICO LA ALIMENTACION PRINCIPAL SERA DE TIPO THW. ESPECIFICACIONES TECNICAS GENERALES RESISTIVIDAD DEL TERRENO SIN TRATAMIENTO. **** ESTE VALOR CONSERVA LA INFORMACION DE CATALOGO DE THORGEL SEGUN DICHA INFORMACION CON DISMINUYE EL 80% R=40/0.2=200 OHMS-M ES LA 3 DOSIS DE THORGEL LA RESISTIVIDAD DEL TERRENO 50 mm2 A 120° 3 Conductores de Cobre Desnudo Conector de Presion Tapa de Concreto 0.30x.0.30 con Marca de angulo 2"x2"x3/16" 0.30 Ver Planta y Compactada Tierra Cernida THORGEL c/m3 con 1 dosis de con 3 dosis de THORGEL c/m3) Electrolitico Medida Comercial 20mmdx2.40mt Varilla de Cobre R=40 OHMS - m (Tierra tratada PROTOCOLOS DE LAS MEDICIONES EFECTUADAS DE LA RESISTENCIA DE DISPERSION AL PROPIETARIO. R < 20 OHMS. PERSONAL ESPECIALIZADO DEBIENDO PRESENTAR LOS NOTA: EL POZO DE TIERRA DEBE SER EJECUTADO POR Valor de Resistividad R < 20 OHMS POZO DE TIERRA ESC. = 1/25 0.15 2.40 0.80 Fierro Liso Asa de 0.50 0.40 0.60 0.30 T.A.B = TABLERO ALTERNADOR DE BOMBAS = TABLERO BOMBA PISCINA T.B.P
