Wood Door And Aluminium Frame Detail DWG Detail for AutoCAD

Wood Door And Aluminium Frame Detail DWG Detail for AutoCAD

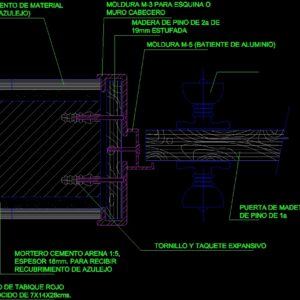

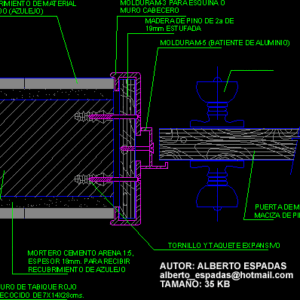

Wood Door and Aluminium Frame detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

screw and expansive taquete

Raw text data extracted from CAD file:

RECUBRIMIENTO DE MATERIAL VIDRIADO (AZULEJO) MOLDURA M-3 PARA ESQUINA O MURO CABECERO MADERA DE PINO DE 2a DE 19mm ESTUFADA MOLDURA M-5 (BATIENTE DE ALUMINIO) PUERTA DE MADETRA MACIZA DE PINO DE 1a TORNILLO Y TAQUETE EXPANSIVO MORTERO CEMENTO ARENA 1:5, ESPESOR 18mm. PARA RECIBIR RECUBRIMIENTO DE AZULEJO MURO DE TABIQUE ROJO RECOCIDO DE 7X14X28cms.

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, autocad, Construction detail, DETAIL, door, DWG, frame, Wood
