Wooden Structure Sum DWG Model for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

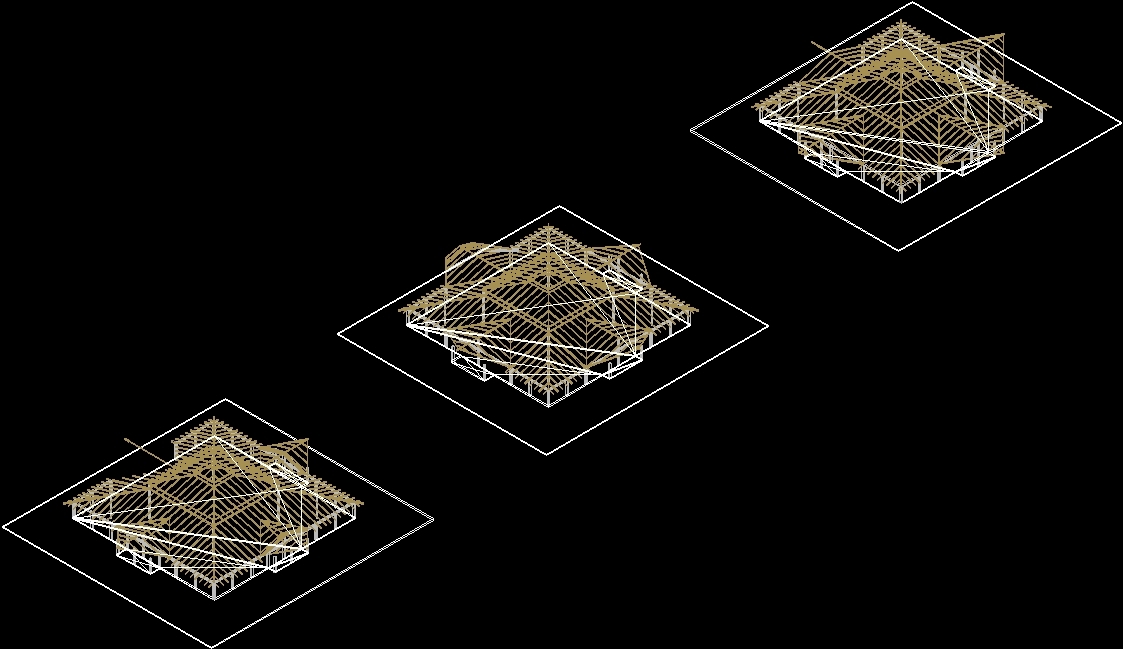

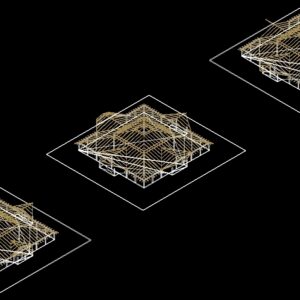

MODELING THE STRUCTURE OF WOOD multipurpose room; WHICH WILL BE USED IN A MIXED CONCRETE WOOD SYSTEM. INCLUDES THREE BODIES WITH A 4 WATERS ROOFING. THIS STRUCTURE COMPOSED BY TOWNS AND CONCRETE BEAMS, BEAMS MAIN. HIGH WOOD; VIGUETAS CORREAS.DEVELOPMENT IN AN AREA OF 900M2; WITH 3 REVENUE AND CAPACITY 750 PERSONS.
| Language | N/A |
| Drawing Type | Model |
| Category | Construction Details & Systems |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Concrete, Wood |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | 3d, autocad, barn, concrete, cover, dach, DETAIL, DWG, hangar, includes, lagerschuppen, mixed, model, Modeling, multipurpose, Restaurant, roof, room, shed, structure, sum, system, terrasse, toit, Wood, wooden |
