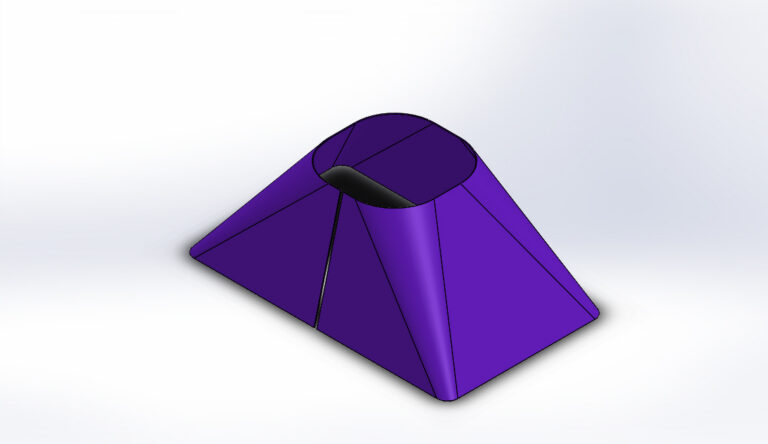

SHEET METAL – HOOPER

$5.00 Close

Hooper is drawn in Sheets Metal that help to generate DXF file for direct cut according to flat pattern in CNC TURET,LASER CUTTING machine,etc.

<img width="600" height="315" src="https://designscad.com/wp-content/uploads/2022/09/IMG-20220912-WA0000.jpg" class="attachment-portfolio-thumb size-portfolio-thumb wp-post-image" alt="" loading="lazy" />

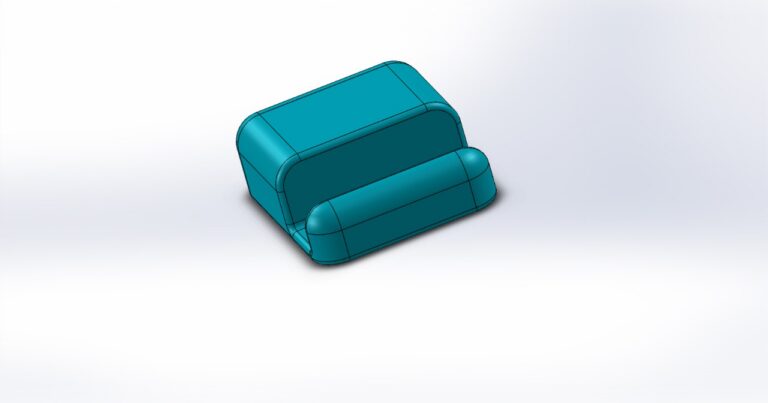

Mobile Stand

$2.00 Close

Mobile stand helps to stand the mobile in horizontal and vertical position both for better view.

<img width="600" height="425" src="https://designscad.com/wp-content/uploads/2022/09/Adobe-Scan-Sep-11-2022_1.jpg" class="attachment-portfolio-thumb size-portfolio-thumb wp-post-image" alt="" loading="lazy" />

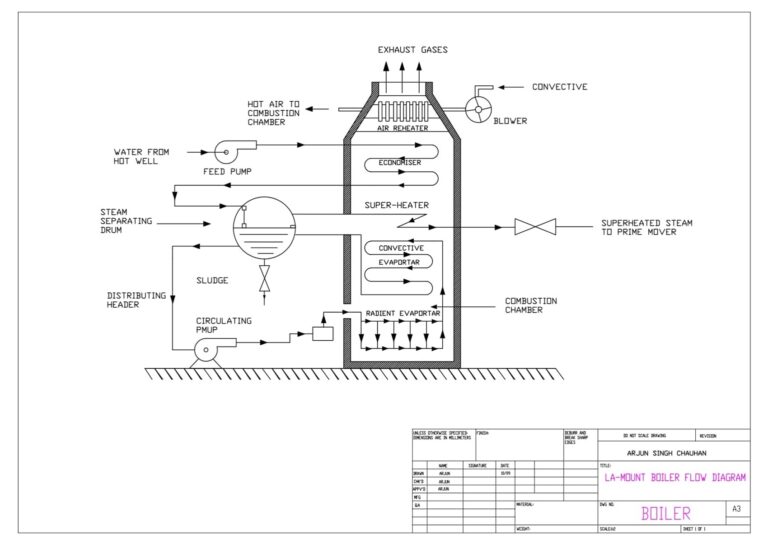

La-Mount Boiler Schematic Diagram

$2.00 Close

The working principle of La-Mount Boiler with Flow Diagram. Boiler generates 40-50 tons of superheated steam per hour.
