Three-Span Bridge with Reinforced Ribs – Puente de tres claros con reforzamiento en las nervaduras

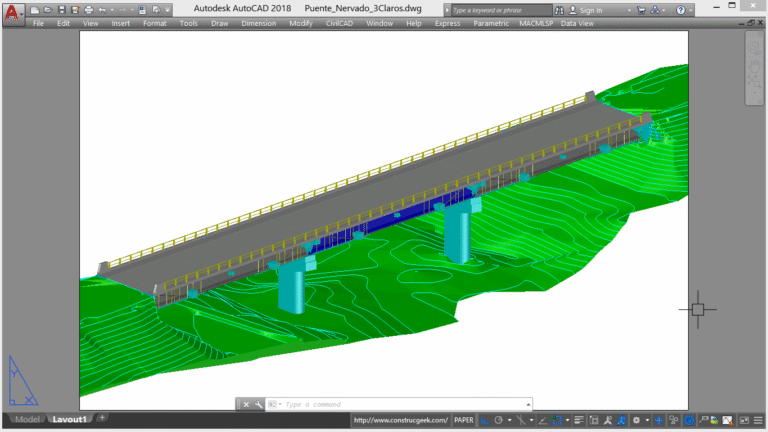

Three-span bridge with reinforced ribs, reinforced concrete Puente de tres claros con reforzamiento en las nervaduras, de concreto reforzado
Underpass Truss Structure – Armadura de paso inferior de un claro

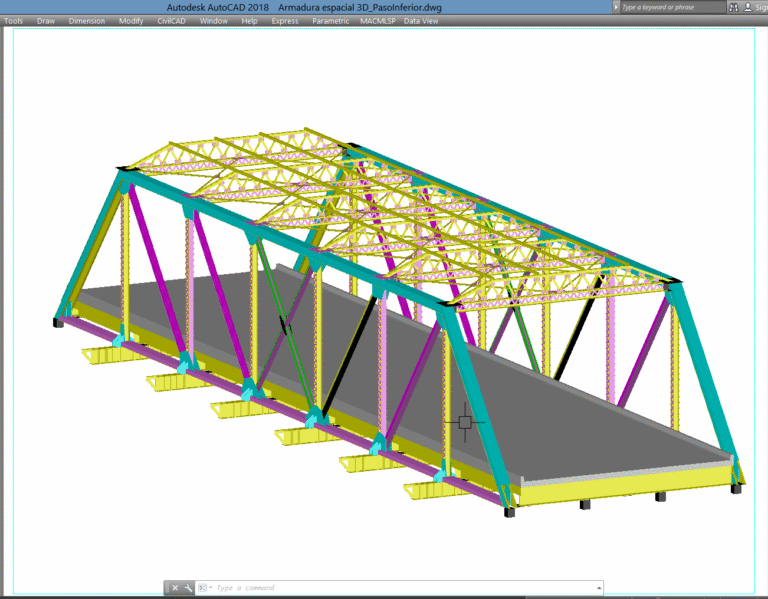

Underpass Truss Structure of a span, made up of steel and reinforced concrete as a floor system, drawn in 3D in autocad. Armadura de paso inferior de un claro, conformado…
Metal Pilaster for Sidewalk 3D T34.4.1 SCT – Pilastra metálica para banqueta 3D T34.4.1 SCT

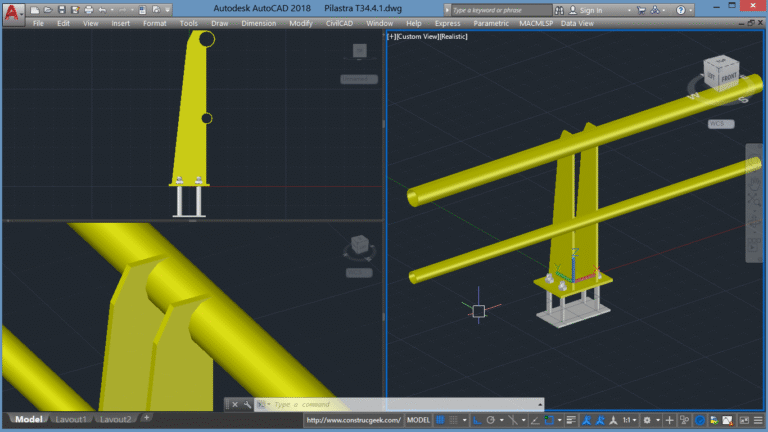

Metal pilaster T34.4.1 for sidewalk (cm), based on two 3" and 2" diameter SHC40 galvanized tubes; A36 steel plates of 1.27 and 0.95 thickness with 4 bolts of 1.27 diameter…
Metal Pilaster 3D T34.6.1 SCT – Pilastra metálica 3D T34.6.1 SCT

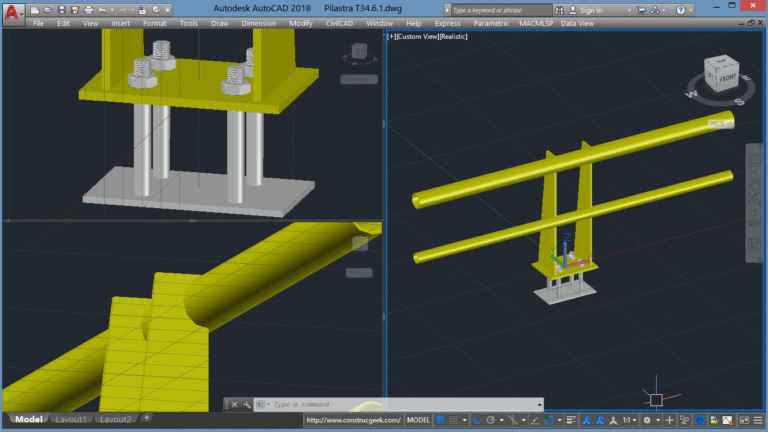

Metal pilaster 3D T34.6.1, based on two 3" and 2" diameter SHC40 galvanized tubes; A36 steel plates of 1.27 and 0.95 thickness with 4 bolts of 1.27 diameter and ASME…
Metal Pilaster for Roadway T34.3.1 SCT – Pilastra metálica para calzada T34.4.1 SCT
Metal pilaster for T34.4.1 roadway, based on 3" diameter SHC40 galvanized tube; A36 steel plates of 1.27 and 0.95 thickness with 4 bolts of 1.27 diameter and ASME B18.2.2 nuts,…
3D Hex Nut with ASME B18.2.2 (Tuerca Hexagonal en 3D con dimensiones ASME B18.2.2)

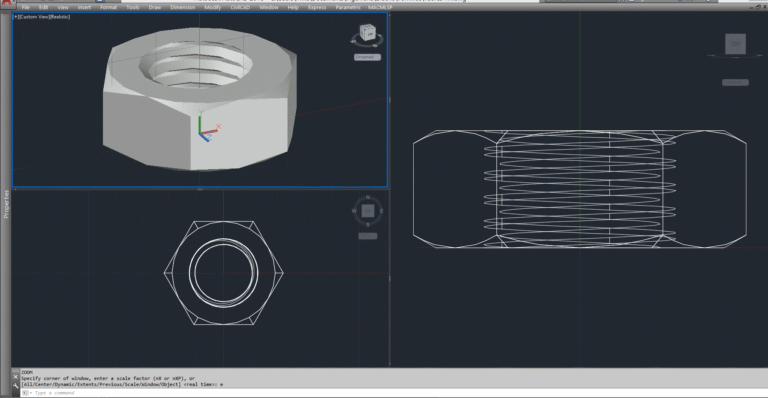

Tuerca Hexagonal en 3D con dimensiones ASME B18.2.2, dibujado en mm Tipo de rosca: BASTA (UNC) Numero de hilos por pulgada Nh: 8 (1) Paso (p) = 0.0783 in (2.38…
PIP – Paso Inferior Peatonal

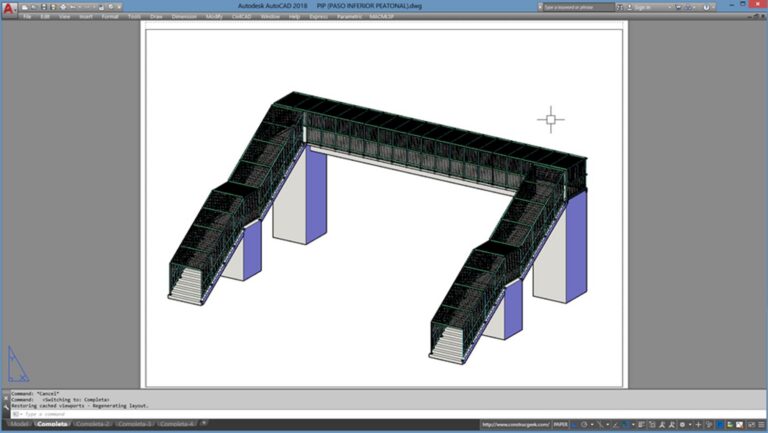

It is a general 3D model of a PIP - Pedestrian Underpass, concrete structure with a cyclone mesh cage, units in centimeters. Useful for generating sketches in geometric surveys. Es…
Stirrup geometry 6 meters high and sent at 30 degrees

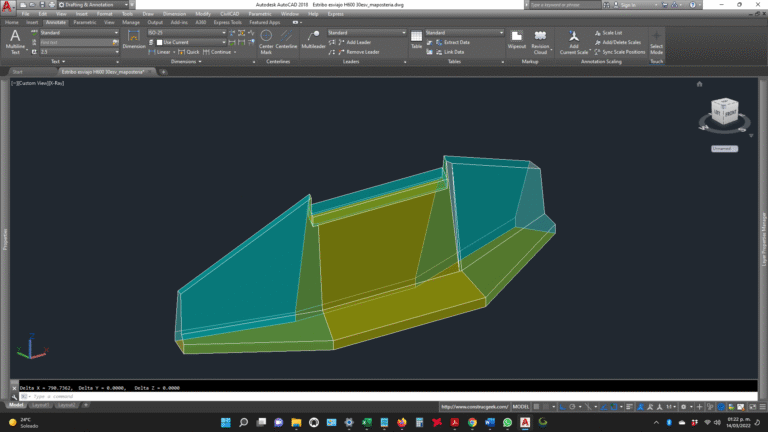

Este es la geometría de un estribo de 600 centímetros de altura y enviajado a 30 grados, en 3D, se presenta en formato de AutoCad, pero también lo ofrezco en…
