3 Storeys House On Narrow Lot 2D DWG Full Project For AutoCAD

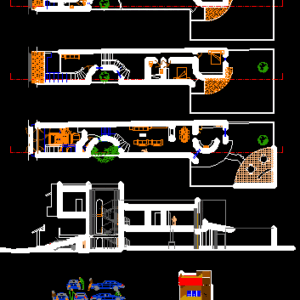

3 storeys house on a narrow lot, with house area ca.118 m2 and lot area ca.180 m2. The house consists of 3 bedrooms, bathroom, kitchen, living room, dining room, and garage. Drawings include Architectural plans, elevation, section, in addition to cars blocks in elevation.
Language | N/A |
Drawing Type | Elevation |
Category | House |
Additional Screenshots |
![]() |
File Type | dwg |
Materials | Concrete, Masonry |
Measurement Units | Metric |
Footprint Area | 50 - 149 m² (538.2 - 1603.8 ft²) |
Building Features | Garage |
Tags | 2d, 2d elevation drawing, architecture, autocad, balcony, bathroom, bedroom, cuts and facades, Dining room, dwelling unit, DWG, economic, full project, garage, home, house, Housing, kitchen, Living room, residential, single family residence |
