60-Liter SS304 HALAR-Lined Chemical Reactor Fabrication Detail

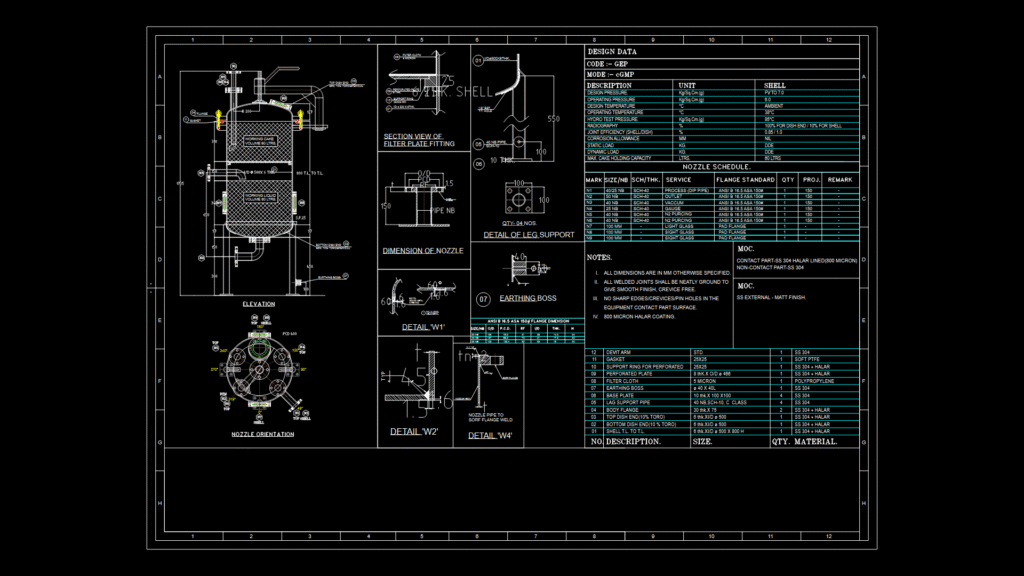

This fabrication drawing details a 60-liter chemical reactor vessel constructed from SS304 stainless steel with 800-micron HALAR lining for corrosion resistance. This reactor features a cylindrical shell (I/D Ø500 × 6mm thick × 800mm height) with 10% torospherical dish ends on top and bottom. The design operates at pressures up to 7.0 kg/cm² with an operating temperature of 38°C and maximum design temperature of 85°C. Nine process nozzles are specified, including vacuum, N2 purging, process/dip pipe, outlet, gauge, and sight glass connections, all utilizing ANSI B16.5 ASA 150# flanges. The filtration system incorporates a 5-micron filter cloth and 8mm thick perforated plate (Ø466mm). Key components include a body flange (30mm thick × 75mm), earthing boss (Ø40 × 40mm), and leg supports utilizing 40 NB SCH-10 pipes with 10mm thick base plates. The drawing provides comprehensive weld details for nozzle connections and includes a detailed nozzle orientation diagram showing the precise placement of connections at 0°, 90°, 120°, 180°, 240°, 270°, and 315° positions around the vessel.
