75kva Substation Post DWG Full Project for AutoCAD

75kva Substation Post DWG Full Project for AutoCAD

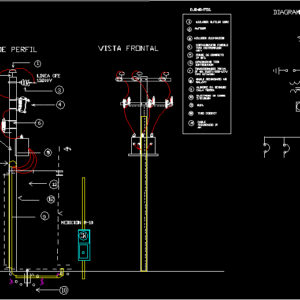

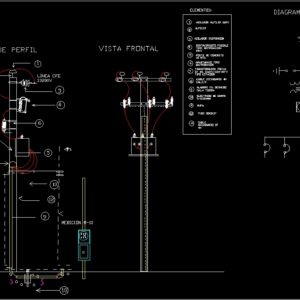

Project for a substation 75kva Poste

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pin isolator, pin, Fuse type distribution circuit breaker, For sale, Station type transformer, Secondary cable, Cu. Naked earth, Copper electrode, profile view, front view, Suspension insulator, Concrete pole mts., Mufa, Conduit pipe, Cfe line, measurement, Secondary cable, Nm., measurement, elements:

Raw text data extracted from CAD file:

2 1 AISLADOR ALFILER 22PC 2 ALFILER 3 4 CORTACIRCUITO FUSIBLE TIPO DISTRIBUCION 15KV 5 6 APARTARAYO TIPO DISTRIBUCION 7 TRANSFORMADOR 75KVA 3F 4H. 13.2KV/220-127V TIPO ESTACION 8 CABLE SECUNDARIO 4H CAL.3/0 9 ALAMBRE CU. DESNUDO CAL.4 TIERRA 10 ELECTRODO DE COBRE 5/8X300MM 11 12 VISTA DE PERFIL VISTA FRONTAL 1 2 9 10 AISLADOR SUSPENSION 3 4 POSTE DE CONCRETO 13 MTS. 5 MUFA 11 6 7 TUBO CONDUIT LINEA CFE 13200V MEDICION M-10 13 CABLE SECUNDARIO 3F 4H 13 12 DIAGRAMA UNIFILAR MEDICION M-10 ELEMENTOS:

Language	Spanish
Drawing Type	Full Project
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	alta tensão, autocad, beleuchtung, détails électriques, detalhes elétrica, DWG, electrical details, elektrische details, full, haute tension, high tension, hochspannung, iluminação, kläranlage, kva, l'éclairage, la tour, lighting, post, poste, Project, substation, torre, tower, treatment plant, turm
