Anchor Piping Detail Nfpa Asperores DWG Detail for AutoCAD

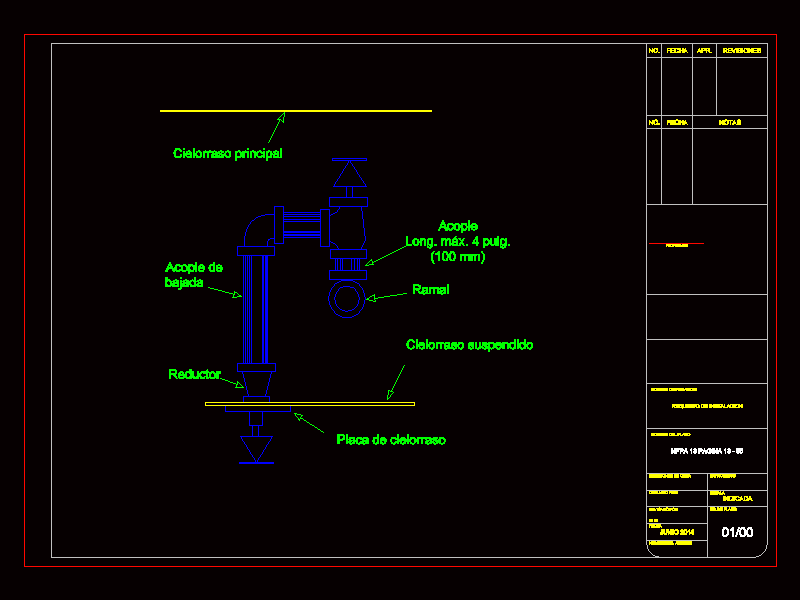

1355B asperores anchor pipes in false ceiling according to standard NFPA 13 year1996

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Main ceiling, Attach long. Max. In., branch, Suspended ceilings, Ceiling tile, reducer, Downstream coupling, do not., date, Notes, Apr., Revisions, do not., date, Project name, Name of the plane, Measurements on site, Id project, drew by, scale, reviewed by, date, file name, do not. Plan, June, Vo. Bo., Indicated, owner, Installation requirement, Nfpa page

Raw text data extracted from CAD file:

Cielorraso principal \W9.35367; Acople \W9.35515; Long. máx. 4 pulg. \W8.77442; (100 mm) Ramal Cielorraso suspendido Placa de cielorraso Reductor Acople de bajada NO. FECHA NOTAS APR. REVISIONES NO. FECHA NOMBRE DE PROYECTO NOMBRE DEL PLANO MEDICIONES EN OBRA ID PROYECTO DIBUJADO POR ESCALA REVISADO POR FECHA NOMBRE DEL ARCHIVO NO. DE PLANO JUNIO 2014 VO. BO. INDICADA PROPIETARIO REQUISITO DE INSTALACION /00 01 NFPA 13 PAGINA 13 - 55

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anchor, autocad, ceiling, DETAIL, DWG, einrichtungen, facilities, false, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, nfpa, pipes, piping, provision, sprinklers, standard, wasser bestimmung, water, year
