Bus Of Underground Distribution DWG Block for AutoCAD

Bus Of Underground Distribution DWG Block for AutoCAD

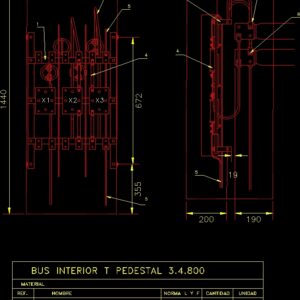

Bus for lines of electric dirtribution underground threephases , four threads and 800 amperios.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Iron soleplate, Bus interior pedestal, Flat washers, Btc cable, first name, Fuse cr, Shoe, Bus interior pedestal, Btc cable, Shoes, Stud bolt with nut, material, Ref., quantity, rule, Pza, unity, Pza, T. pedestal, Inner bus

Raw text data extracted from CAD file:

\A1;495 \A1;355 \A1;1440 \A1;455 \A1;672 \A1;190 \A1;200 \A1;19 \A1;76.5 495 ESCUADRA DE SOLERA DE HIERRO DE 123.8 x BUS INTERIOR T PEDESTAL 3.4.800 ARANDELAS PLANAS Y D/PRESION D/9.5mm Ø CABLE BTC 1x15 A 1 x 70 (DERIVACIONES) 355 1440 NOMBRE FUSIBLE CR 200 25.4 x 6.35 mm ZAPATA C 150-1 BUS INTERIOR T PEDESTAL 3.4.500 CABLE BTC 1x150 (ALIMENTADORES) ZAPATAS C 15-1 A C 70-1 TRONILLO 9.5 x 25.4mm CON TUERCA MATERIAL 3 5 6 4 2 REF. 1 455 X1 1 672 X2 X3 3 5 190 5 CANTIDAD 200 2.0517 2.0517 2.0517 2.0517 NORMA L Y F 2.0517 2.0517 1 1 1 1 1 1 5 PZA PZA PZA PZA PZA UNIDAD PZA 19 76.5 4 4 2 3 6 T. PEDESTAL 3.4.800 BUS INTERIOR
