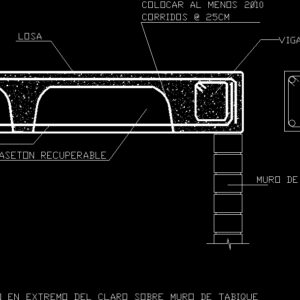

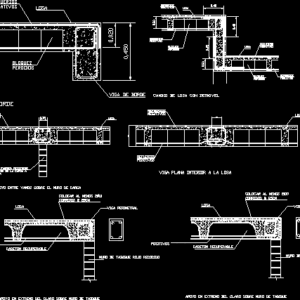

Coffered slabs – Sections – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

perimeter beam, place at least, corridos, slab, recoverable cassette, positive, red annealing wall, Extreme support of the clearing on partition wall, negative reinforcements, positive reinforcements, slab, factory wall resist as a function of the load withstand, Support between spans on the loading wall, negative reinforcements, positive reinforcements, slab, interior flat beam the slab, negative reinforcements, positive reinforcements, slab, lost blocks, edge beam, slab, negative reinforcements, slab, lost blocks, positive reinforcements, lost blocks, change of slab with unevenness, negative reinforcements, slab, positive reinforcements, lost blocks, secondary edge beam, slab, armed, slab in flight

Raw text data extracted from CAD file:

VIGA PERIMETRAL COLOCAR AL MENOS 2010 CORRIDOS @ 25CM LOSA CASETON RECUPERABLE POSITIVOS MURO DE TABIQUE ROJO RECOCIDO APOYO EN EXTREMO DEL CLARO SOBRE MURO DE TABIQUE 0.15 0.30 5 REFUERZOS NEGATIVOS 5 REFUERZOS POSITIVOS LOSA MURO DE FABRICA RESISTENE EN FUNCION DE LA CARGA A SOPORTAR APOYO ENTRE VANOS SOBRE EL MURO DE CARGA 0.15 0.30 5 REFUERZOS NEGATIVOS 5 REFUERZOS POSITIVOS LOSA VIGA PLANA INTERIOR A LA LOSA 0,020 0,450 0,30 5 5 5 REFUERZOS NEGATIVOS REFUERZOS POSITIVOS LOSA BLOQUES PERDIDOS VIGA DE BORDE VIGA DE BORDE 0,40 0,40 0.20 0.45 0.20 LOSA REFUERZOS NEGATIVOS REFUERZOS NEGATIVOS LOSA 5 5 BLOQUES PERDIDOS REFUERZOS POSITIVOS REFUERZOS POSITIVOS BLOQUES PERDIDOS 5 5 5 CAMBIO DE LOSA CON DESNIVEL 0,15 0,40 0,010 0,30 REFUERZOS NEGATIVOS LOSA REFUERZOS POSITIVOS BLOQUES PERDIDOS 5 5 VIGA DE BORDE SECUNDARIA 5 LOSA ARMADO DE 5 LOSA EN VOLADO
