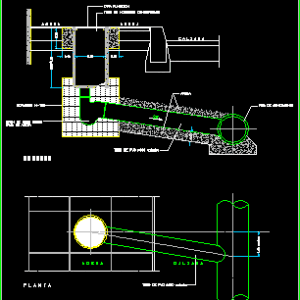

Connection and sewerage

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

maximum, The pipe with concrete thickness of, Network. If it were justifiably not possible it would be strengthened, It is preferable the direct connection of the wells of registration of, note:, maximum, Outer pvc tube, Household sanitation attack, concrete, Sand bed, Stoneware sifon on, Sanitation network, sand, Centrifuged concrete tube, Cap cast, Outer pvc tube

Raw text data extracted from CAD file:

\A1;1.00 maximo \A1;0.30 \A1;0.90/0.50 \A1;0.10 \A1;0.20 \A1;0.10 \A1;0.10 A C E R A LA TUBERIA CON HORMIGON H-150 Y ESPESOR DE 10cms. RED GENERAL. SI JUSTIFICADAMENTE NO FUERA POSIBLE SE REFORZARIA ES PREFERIBLE LA ACOMETIDA DIRECTA A LOS POZOS DE REGISTRO DE NOTA: P L A N T A 1.00 maximo C A L Z A D A TUBO DE PVC d160 exterior 0.30 ACOMETIDA DOMICILIARIA DE SANEAMIENTO HORMIGON H-100 0.90/0.50 0.10 0.20 A C E R A S E C C I O N CAMA DE ARENA SIFON DE GRES SOBRE RED DE SANEAMIENTO ARENA C A L Z A D A 2% 0.10 A C E R A TUBO DE HORMIGON CENTRIFUGADO TAPA FUNDICION 0.10 TUBO DE PVC d160 exterior
