Construction Detail DWG Detail for AutoCAD

Construction Detail DWG Detail for AutoCAD

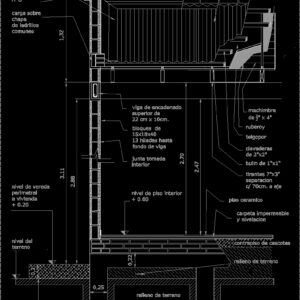

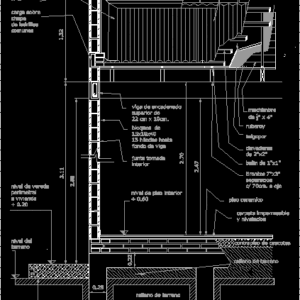

Construction details, complete cutting of foundation to roof, specifying all the components that make up foundation of pilotines, cement-block wall, wall and ceiling meet, detailed description of tin roof zinusoidal

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ground level, land filling, joint taken inside, Spun blocks to beam bottom, cm top chained beam, ruberoy, telgopor, nailers of, bulin, shaft separation braces, sheet metal, on common brick veneer, level of housing perimeter street, interior floor level, land filling, rubble underlayment, ceramic floor, waterproof leveling folder

Raw text data extracted from CAD file:

1,5 2.88 2.47 2.70 0,2 3.11 1.69 0,22 0,25 1,32 nivel del terreno relleno de terreno 5 3.11 junta tomada interior bloques de 15x18x40 13 hiladas hasta fondo de viga viga de encadenado superior de 22 cm x 10cm. \A1;machimbre de \S1/2;" x 4" ruberoy telgopor clavaderas de 2"x2" bulin de 1"x1" tirantes 7"x3" separacion c/ 70cm. a eje \A1;babetas de chapa H°G° \A1;chapa de H°G° \A1;carga sobre chapa de ladrillos comunes \A1;carga sobre chapa de ladrillos comunes nivel de vereda perimetral a vivienda + 0.20 2.88 2.47 2.70 5 nivel de piso interior + 0.60 1.69 5 5 5 relleno de terreno contrapiso de cascotes piso ceramico carpeta impermeable y nivelacion

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, complete, components, construction, construction details section, constructive, cut construction details, cutting, DETAIL, detailed, details, DWG, FOUNDATION, pilotines, roof
