Constructive Details Plane Cover DWG Detail for AutoCAD

Constructive Details Plane Cover DWG Detail for AutoCAD

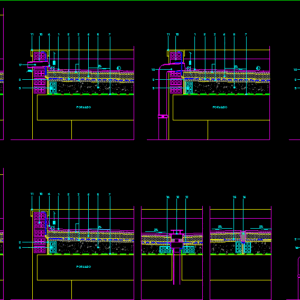

SEVERAL CONSTRUCTIVE DETAILS OF TRANSIS INVERTED ROOF; MEETING WITH OVERALLS , SINKS , DOWNSPOUTS AND EXPANSION JOINTS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

inverted flat, passable, ceramic tile flooring, thermal insulation of plates, waterproofing sheet of bitumen, height protection zabaleta, slope formation with, polystyrene perimeter panel, thickness regulation mortar, brick foot plastered both sides, artificial stone coping with drip, with welded joints. overlaps, teachers of partition hd perimeter mortar, a: Reinforce skirt dihedrals with double foil, edge of welded asphalt fabric cazoleta, lhd drawer cup housing, siphon cup, Elastic mastic filling in retraction joint, Asphalt cloth crease formation, in retraction joint, extruded polystyrene, vapor barrier, b: to place the waterproofing membrane it will start at the lowest levels. the overlaps shall be perpendicular parallel the direction of maximum greater than cm, pvc overflow, pvc drain pipe, wrought, wrought, wrought, wrought, wrought, wrought, with protective grate gap clearance, wrought, wrought

Raw text data extracted from CAD file:

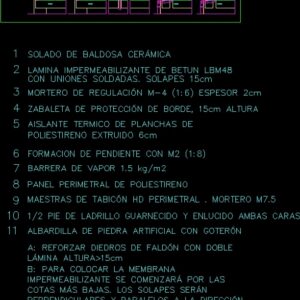

\A1;0.25 \A1;0.25 \A1;0.25 \A1;0.25 \A1;0.25 \A1;0.25 \A1;0.25 \A1;0.25 \A1;0,05 \A1;0,05 plana invertida transitable 3 9 8 5 4 6 2 1 SOLADO DE BALDOSA CERÁMICA AISLANTE TERMICO DE PLANCHAS DE LAMINA IMPERMEABILIZANTE DE BETUN LBM48 ZABALETA DE PROTECCIÓN DE BORDE, 15cm ALTURA FORMACION DE PENDIENTE CON M2 (1:8) PANEL PERIMETRAL DE POLIESTIRENO MORTERO DE REGULACIÓN M-4 (1:6) ESPESOR 2cm 10 1/2 PIE DE LADRILLO GUARNECIDO Y ENLUCIDO AMBAS CARAS 11 ALBARDILLA DE PIEDRA ARTIFICIAL CON GOTERÓN CON UNIONES SOLDADAS. SOLAPES 15cm MAESTRAS DE TABICÓN HD PERIMETRAL . MORTERO M7.5 A: REFORZAR DIEDROS DE FALDÓN CON DOBLE LÁMINA ALTURA>15cm 12 13 BORDE DE TELA ASFÁLTICA SOLDADA A CAZOLETA 14 CAJÓN DE LHD ALOJAMIENTO DE CAZOLETA CAZOLETA SIFÓNICA 15 RELLENO DE MÁSTIC ELÁSTICO EN JUNTA DE RETRACCIÓN 16 FORMACIÓN DE PLIEGUE DE TELA ASFÁLTICA EN JUNTA DE RETRACCIÓN POLIESTIRENO EXTRUIDO 6cm 7 BARRERA DE VAPOR 1.5 kg/m2 B: PARA COLOCAR LA MEMBRANA IMPERMEABILIZANTE SE COMENZARÁ POR LAS COTAS MÁS BAJAS. LOS SOLAPES SERÁN PERPENDICULARES Y PARALELOS A LA DIRECCIÓN DE MÁXIMA PENDIENTE, Y MAYORES DE 10 cm 17 REBOSADERO PVC d50mm 18 TUBO DE DESAGÜE PVC d70mm 10 2% FORJADO 2% 11 9 12 13 14 A 2% 15 16 2% 10 2% FORJADO 1 2 3 5 11 4 6 8 9 A 2% FORJADO 4 A 10 2% FORJADO 11 8 14 A 12 13 7 0.25 B 0.25 0.25 0.25 10 2% FORJADO 11 8 9 A 0.25 17 5 10 2% FORJADO 11 8 9 A 0.25 B 17 5 1 2 3 5 4 6 8 7 4 1 2 3 5 6 7 10 11 8 9 12 13 1 2 3 5 6 7 1 2 3 5 4 6 7 1 2 3 5 4 6 7 B CON REJILLA PROTECTORA Y COQUILLA DE HOLGURA 10 2% FORJADO 11 8 9 A 0.25 18 1 2 3 5 6 7 B 10 2% FORJADO 11 8 9 A 0.25 18 1 2 3 5 6 7 B

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, constructive, cover, covers, dach, DETAIL, details, downspouts, DWG, hangar, inverted, lagerschuppen, meeting, plane, PLANES, roof, shed, sinks, structure, terrasse, toit
