Cylindrical Water Tank Heat Exchanger 3D Model with Coils

Cylindrical Heat Exchanger Design Overview

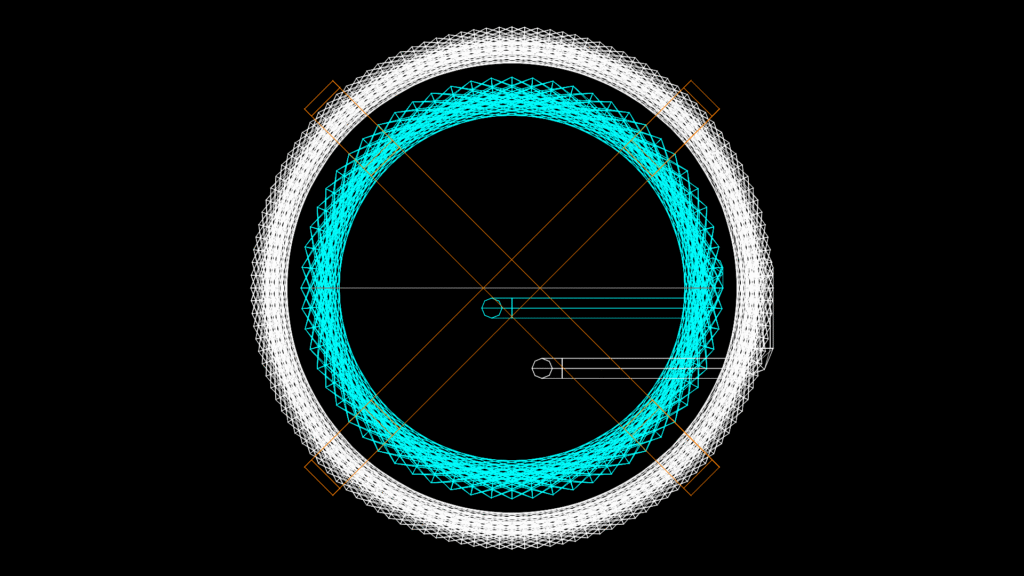

This detailed 3D model depicts a cylindrical water tank heat exchanger with concentric coil system. The design features a double-walled cylindrical vessel with two distinct piping circuits. The outer vessel wall (shown in white mesh) provides structural integrity while the inner wall (rendered in cyan/turquoise) creates the primary heat exchange chamber.

Key Technical Elements:
* Concentric cylindrical design optimizes heat transfer efficiency
* Dual piping circuits with inlet/outlet connections visible at center
* Mesh-based 3D solid modeling enables precise thermal analysis
* Cross-sectional view reveals internal flow pathways
* Heat transfer coils positioned strategically for maximum thermal contact

The model uses a wireframe representation to visualize both the tank walls and internal components. The cylindrical heat exchanger appears designed for industrial applications requiring significant thermal transfer capacity. Orange reference lines establish the center axis and key dimensional relationships, while the two horizontal pipe sections likely represent inlet and outlet connections. The entire assembly is modeled using 3D solids (14 entities identified in the file), indicating this is intended for manufacturing or detailed engineering analysis rather than just conceptual design.
