Dc Forged DWG Section for AutoCAD

Dc Forged DWG Section for AutoCAD

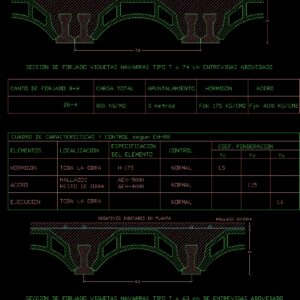

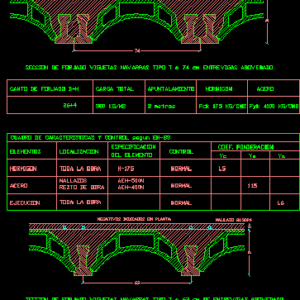

Section ceiling arched joists

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Negatives indicated in plant, mesh, section of wrought iron joists navarras type cm entrevigas domed, Forged edge, total charge, shoring, meters, concrete, fck, steel, fyk, coef. weighing, normal, control, of the element, all the work, location, elements, control characteristics table according to, concrete, steel, execution, specification, mesh, rest of work, all the work, normal, section of wrought iron joists navarras cm type of domed entrevigas, mesh, Negatives indicated in plant, forbvt

Raw text data extracted from CAD file:

74 63 B H \A1;74 \A1;B \A1;H \A1;63 \A1;H \A1;B NEGATIVOS INDICADOS EN PLANTA MALLAZO 20.30R4 5 SECCION DE FORJADO VIGUETAS NAVARRAS TIPO T a 74 cm ENTREVIGAS ABOVEDADO B H CANTO DE FORJADO B+H CARGA TOTAL 26+4 800 KG/M2 APUNTALAMIENTO 3 metros HORMIGON Fck 175 KG/CM2 ACERO Fyk 4100 KG/CM2 1.5 COEF. PONDERACION NORMAL CONTROL H-175 DEL ELEMENTO TODA LA OBRA LOCALIZACION ELEMENTOS CUADRO DE CARACTERISTICAS Y CONTROL segun EH-88 HORMIGON ACERO EJECUCION ESPECIFICACION MALLAZOS RESTO DE OBRA TODA LA OBRA AEH-500N AEH-400N NORMAL NORMAL Yc Ys Ya 1.15 1.6 SECCION DE FORJADO VIGUETAS NAVARRAS TIPO T a 63 cm DE ENTREVIGAS ABOVEDADO 5 MALLAZO 20.30R4 NEGATIVOS INDICADOS EN PLANTA FORBVT H B

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	arched, autocad, barn, ceiling, cover, dach, DWG, forged, hangar, joists, lagerschuppen, roof, section, shed, structure, terrasse, toit
