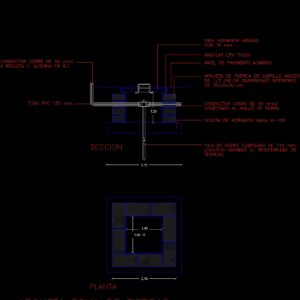

Detail camera ground connection- Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pitching earthworks, PVC tube mm., scale, pitching earthworks, plant, section, level of finished floor, ground, variable length resistibility of, galvanized steel pin of mm., concrete screed mass, connected to the ground ring, copper conductor of, of cm., Standing interior dimensions, solid brick factory chest, angular lpn, with mm., reinforced concrete cover, terminal strip c. alternates in b.t., copper conductor of

Raw text data extracted from CAD file:

1.20 0.72 2.48 1.40 1.40 \A1;1.20 \A1;0.72 \A1;2.48 \A1;1.40 \A1;1.40 ARQUETA TOMA DE TIERRAS TUBO PVC í30 mm. 5 0.72 5 5 5 ESCALA 1:20 ARQUETA TOMA DE TIERRAS PLANTA SECCION NIVEL DE PAVIMENTO ACABADO TERRENO LONGITUD VARIABLE S/ RESISTIBILDAD DE PICA DE ACERO COBRIZADO DE í19 mm. SOLERA DE HORMIGON MASA H-100 CONECTADO AL ANILLO DE TIERRA CONDUCTOR COBRE DE 50 mm2 DE 35x35x30 cm. DE 1/2 PIE DE DIMENSIONES INTERIORES ARQUETA DE FABRICA DE LADRILLO MACIZO ANGULAR LPN 50x50 CON í6 mm. TAPA HORMIGON ARMADO A REGLETA C. ALTERNA EN B.T. CONDUCTOR COBRE DE 50 mm2
