Detail Flagstone Concrete DWG Section for AutoCAD

Detail Flagstone Concrete DWG Section for AutoCAD

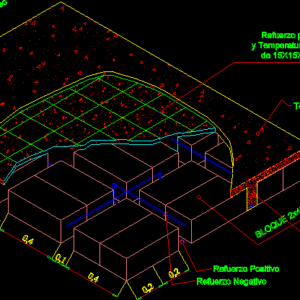

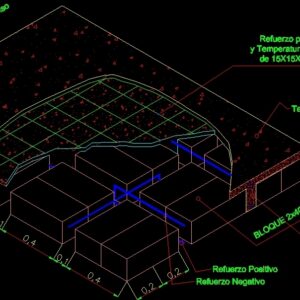

Detalil flagstone where we can see an axonometric section and like he should arm and to finish a flagstone of concrete

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

block, finished slab, finished floor, negative reinforcement, positive reinforcement, reinforcement by contraction temperature ….. welded mesh in slab, ribbing

Raw text data extracted from CAD file:

0.20 BLOQUE 2x40x10 Terminado de losa Terminado de Piso Refuerzo Negativo Refuerzo Positivo Refuerzo por Contracción y Temperatura..... Malla Electrosoldada de 15X15X5.5 en losa N+8.10 Nervaduras 0,4 0,2 0,2 0,1 0,4 0,1 0,4 0,1 0,4

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	arm, autocad, axonometric, béton armé, concrete, DETAIL, DWG, finish, flagstone, formwork, reinforced concrete, schalung, section, slab, stahlbeton
