Detail Mesh Of Substation DWG Detail for AutoCAD

Detail Mesh Of Substation DWG Detail for AutoCAD

System of physical earth

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Mts., Mts., Tab., lime. Of diam., In the detail to arrive a maximum value of ohms, So it will be necessary to apply a soil improver, Around each copper weld rod as shown, Length of buried conductors, Assuming an ohms meter resistance, Ohms, see detail, Ohms, resistance, Substation, Depth of conductors, Ground system area, distance, Resistivity of the terrain, Substation grid, Approximate formula, Plant substation, manhole cover, Earth improver, Welded wire rod, Copper wire mesh ground not less than mts. Under floor level, detail, plant, Awg ground system, Cadweld connection type gy rod welded by, Connection cadweld connection structures other ground systems, Cadweld connection type tac for lime. Cat., Cadweld connection xac type, Bare copper cable lime. Awg, Per mm., Kva, Pedestal transformer, Ing. J. Manuel alatorre o., Electrification project, Drawing of electrification project, electric engineering, drawing.

Raw text data extracted from CAD file:

\A1;0.40 Mts. \A1;2,00 M \A1;6,00 M \A1;6,00 M \A1;0.40 Mts. A TAB. "GENERAL" CAL. 4/0 AWG=107,2mm2=211,6KCM= 0,01326MTS DE DIAM. EN EL DETALLE "A" PARA LLEGAR A UN VALOR MAXIMO DE 5 OHMS POR LO QUE SE REQUERIRA APLICAR UN MEJORADOR DE TIERRA ALREDEDOR DE CADA VARILLA COPPER WELD COMO SE INDICA LONGITUD DE LOS CONDUCTORES ENTERRADOS 1 + SUPONIENDO UNA RESISTENCIA DE 100 OHMS METRO 8,18 OHMS 5 Ver detalle "A" 2 1 3 5 3 4 3 5 3 2 5 5 2 5 4 1 3 5 5 1 3 R = 8,18 Ohms Rg=P (100) RESISTENCIA RESISTENCIA 20 X A(36) L(60,20) 1 + 1 5 2 5 2 3 5 3 Y SUBESTACION 3 5 1 P = 100 Ohms/M PROFUNDIDAD DE LOS CONDUCTORES L = 48+(4 X 3,05) = 60,20 M AREA DEL SISTEMA DE TIERRA A = 36 M2 D = 2,00 M h = 0,45 M DISTANCIA RESISTIVIDAD DEL TERRENO MALLA DE SUBESTACION FORMULA APROXIMADA 20 è ç Rg 1 1 P L = + æ ç ç ç 1 A + è ç ø ÷ ø ÷ ö ÷ ÷ ÷ 1 1 20 A h + æ ç ç ç = ö ÷ ÷ ÷ 20/A(36) 1 + h(0,45) X 1 PLANTA SUBESTACION 5 1 Tapa de registro Mejorador de tierra (TIPO GEM) Varilla cobrizada por soldadura de 16MM x 3048MM Cable de cobre de malla de tierra a no menos de 0.35 Mts. Bajo el nivel de piso DETALLE "A" 5 PLANTA A SISTEMA DE TIERRA 1-4/0 AWG Conexion Cadweld tipo GY y varilla cobrizada por soldadura de 16MM. Conexion Cadweld o conexion a estructuras o otros sistemas de tierra Conexion Cadweld tipo TAC para Cal. 4/0 Cat. TAC-2Q2Q Conexion Cadweld tipo XAC Cable de cobre desnudo Cal. 4/0 AWG 2 4 3 5 por 3048 MM. 1 225 KVA 22860-220/127 V TRANSFORMADOR DE PEDESTAL Ing. J. Manuel Alatorre O. Ing. J. Manuel Alatorre O. PROYECTO DE ELECTRIFICACION : DIBUJO DE PROYECTO DE ELECTRIFICACION : ODONOJU@CYBERCABLE.NET.MX INGENIERIA ELECTRICA PROYECTO, CALCULO, ASESORIA, DIBUJO.

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure

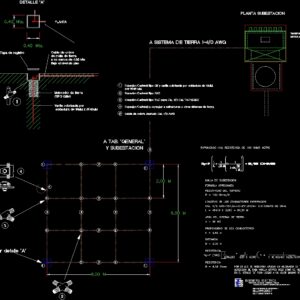

Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	alta tensão, autocad, beleuchtung, DETAIL, détails électriques, detalhes elétrica, DWG, earth, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, mesh, physical, substation, system, torre, tower, treatment plant, turm
