Detail Section Facade DWG Section for AutoCAD

Detail Section Facade DWG Section for AutoCAD

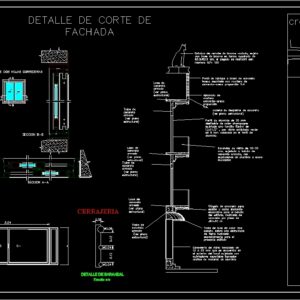

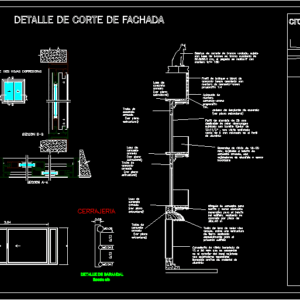

Detail section facade with windows and doors typpical of building three plants

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sketch, av. railway, oaxaca avenue, cjon lopez mateos, section, door with two sliding doors, bronze statue of subject with bronze base in square shape of the bonding will be made with mortar, hollow concrete block partition parapet seated with proportion mortar, flattening mortar ratio, flat concrete ruler chain, flat reinforced concrete slab, flat reinforced concrete lock, champagne-colored sliding aluminum profile clamped with fixative screw with green inked glass of mm placed in aluminum ferrofil, concrete balcony fastening glass railings with stainless steel aluminum fasteners, flat reinforced concrete slab, flat reinforced concrete lock, flat reinforced concrete slab, concrete gargoyle for support as a decorative element for the balcony of the concrete made by piece of, canvas tarpaulin wine color on an iron structure made especially for the present building, mm tempered glass shelving located on the outside of the room fastened with special fasteners called spiders in aluminum material, facade cutting detail, balcony, scale, locksmith, rail detail

Raw text data extracted from CAD file:

\A1;0.15 \A1;.90 croquis AV. FERROCARRIL AVENIDA OAXACA CJON. LOPEZ MATEOS 25.8 20 N SECCION A-A SECCION B-B A B B A PUERTA DE DOS HOJAS CORREDERAS Estatua de remate de bronce vaciado, sujeto con base de bronce en forma cuadrada de 83.5x83.5 cm, el pegado se realizará con mortero fc'= 150 Pretil de tabique o block de concreto hueco asentado con mortero de cemento-arena proporción 1:4 Aplanado de mortero cemento-arena proporción 1:4 cadena de desplante de concreto (ver plano estructural) Losa de concreto armado (ver plano estructural) Trabe de concreto armado (ver plano estructural) Perfil de aluminio de 25 mm deslizable de color champagne sujetado con tornillo fijador de 12x11/2" , con vidrio entintado verde de 6 mm colocado en el ferfil de aluminio Barandas de vidrio de 12-20 mm, sujetada a balcón de concreto armado, con sujetadores de aluminio o acero inoxidable Losa de concreto armado (ver plano estructural) Trabe de concreto armado (ver plano estructural) Trabe de concreto armado (ver plano estructural) Losa de concreto armado (ver plano estructural) Gárgola de concreto para sostén y como elemento decorativo para el balcón del edificio, realizado de concreto por pieza de .90x.40 m Toldo de lona de color vino oscuro, sobre una estructura de fierro realizado especialmente para el presente edificio Cancelería de vidrio templado de 12 a 20 mm que se encuentra en el exterior del local sujetado con sujetadores especiales llamados arañas de material de aluminio \W2.91473; DETALLE DE CORTE DE \W2.91473; FACHADA 0.15 Balcón .90 Escala s/e 0.12 0.05 0.12 d0.06 d0.04 d0.04 CERRAJERIA DETALLE DE BARANDAL 3.04

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, building, dach, dalle, DETAIL, doors, DWG, escadas, escaliers, facade, lajes, mezanino, mezzanine, plants, platte, reservoir, roof, section, slab, stair, telhado, toiture, treppe, windows
