Diagram Electrical Substation DWG Full Project for AutoCAD

Diagram Electrical Substation DWG Full Project for AutoCAD

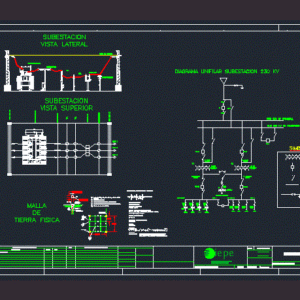

Plano Electric Substation in various views; academic project for the field of electrical substations .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Iepe, Electrical project electricity, Www.iepeiluminacion.com, kind, screw, Lightning arresters, Cutting blade, Current transformer, Potential transformer, switch, Bus, Kv generation, Kv transmission, Main kv bus, Single line diagram kv substation, Transfer kv bus, auxiliary services, Kva, Mv kv, Bus, Kva, residential area, Mall, hospital, industrial zone, Kva, habitable zone, C.p., date, Mca, description, date, by, Num., reference, Dib. Elab. In: ver. Mex., drawing, revised, Esc .:, Rev., For review approval, Cad, Beatriz Lopez Gutierrez, Acot. In: mts, do not. draft:, Kv electrical substation, Ing. Eucalit sanchez garcia, Side view substation, Watch wire, Top view substation, phase, switch, T.p., T.c., Lightning arresters, Blades, transformer, Bus kv, transformer, switch, T.p., T.c., Blades, Lightning arresters, Mts., Main kv bus, Single line diagram kv substation, Transfer kv bus, auxiliary services, Kva, Mv kv, Bus, Kva, residential area, Mall, hospital, industrial zone, Kva, habitable zone, C.p., date, Mca, description, date, by, Num., reference, Dib. Elab. In: ver. Mex., drawing, Esc .:, Rev., For review approval, Cad, Ing. Diego a. Rosales diaz, Acot. In: mts, do not. draft:, Kv electrical substation, Www.iepeiluminacion.com, Side view substation, Watch wire, Top view substation, phase, switch, T.p., T.c., Lightning arresters, Blades, transformer, Bus kv, transformer, switch, T.p., T.c., Blades, Lightning arresters, Mv kv, Bus kv, Kcmil nude, Awg naked, Kcmil nude, Awg naked, Awg vulcanized conductor with insulation xlp, Awg vulcanized conductor with insulation xlp, Kcmil vulcanized conductor with insulation xlp, Bus kv, transformer, switch, Blades, Bus, Lightning arresters, Symbology, Tab., lime. Of diam., In the detail to arrive a maximum value of ohms, So it will be necessary to apply a soil improver, Around each copper weld rod as shown, Length of buried conductors, Assuming an ohms meter resistance, Ohms, see detail, Ohms, resistance, Substation, Depth of conductors, Ground system area, distance, Resistivity of the terrain, Substation grid, Approximate formula, Mts., manhole cover, Earth improver, Welded wire rod, Copper wire mesh ground not less than mts. Under floor level, detail, Mts., plant, Cadweld connection type gy rod welded by, Connection cadweld connection structures other ground systems, Cadweld connection type tac for lime. Cat., Cadweld connection xac type, Bare copper cable lime. Awg, Per mm., Physical earth mesh

Raw text data extracted from CAD file:

iepe ILUMINACION, ELECTRICIDAD Y PROYECTOS ELECTRICOS www.iepeiluminacion.com diego@iepeiluminacion.com 0,70 TD3 F.F42 TIPO "A" TORNILLO d3/8" P1 P2 TD2 TD1 FD4.1 FY4 Apartarrayos \W4.41957; Cuchilla \W4.41957; Seccionadora Transformador de Corriente Transformador de Potencial \W2.34096; Interruptor \W5.17472; Bus de \W5.17472; 400kV \W1.56132; Generacion \W1.56132; 23 kV \W1.11673; Transmision \W1.11673; 400 kV BUS 230 KV PRINCIPAL DIAGRAMA UNIFILAR SUBESTACION 230 KV M BUS 230 KV DE TRANSFERENCIA T1 T2 SERVICIOS AUXILIARES 75 KVA 13.8/220/127V 10 MVA 230/13.8 KV 10 MVA 230/13.8 KV 52 89-1 89-2 89-3 52-A1 52-A2 BUS 1 BUS 2 500 KVA 13.8/220/127V ZONA RESIDENCIAL CENTRO COMERCIAL HOSPITAL ZONA INDUSTRIAL ZONA INDUSTRIAL ZONA INDUSTRIAL ZONA INDUSTRIAL 1000 KVA 13.8/220/127V 750 KVA 13.8/220/127V 1500 KVA 13.8/220/127V ZONA HABITACIONAL 52-A11 52-A21 52-1 T3 T4 T5 T6 TA C.P. FECHA \T4.00000;REVISIONES MCA DESCRIPCION FECHA POR NUM. \T1.70000;DIBUJOS DE REFERENCIA DIB. ELAB. EN: VERACRUZ, VER. MEX. 14/05/13 DIBUJO REVISO ESC.: 1:100 E-001 REV. A PARA REVISION Y APROBACION A CAD BEATRIZ LOPEZ GUTIERREZ ACOT. EN: MTS No. PROYECTO: 0001 SUBESTACION ELECTRICA 230 KV ING. EUCALIT SANCHEZ GARCIA E10020324 SUBESTACION VISTA LATERAL HILO DE GUARDA SUBESTACION VISTA SUPERIOR FASE 1 FASE 2 FASE 3 INTERRUPTOR T.P. T.C. APARTARRAYOS CUCHILLAS TRANSFORMADOR BUS 230 KV BUS 13.8 KV TRANSFORMADOR INTERRUPTOR T.P. T.C. CUCHILLAS APARTARRAYOS \A1;6,00 M \A1;6,00 M \A1;2,00 M \A1;0.40 Mts. \A1;0.40 Mts. BUS 230 KV PRINCIPAL DIAGRAMA UNIFILAR SUBESTACION 230 KV BUS 230 KV DE TRANSFERENCIA T1 T2 SERVICIOS AUXILIARES 75 KVA 13.8/220/127V 20 MVA 230/13.8 KV z=10% 52 89-1 89-2 89-3 52-A1 52-A2 BUS 1 BUS 2 500 KVA 13.8/220/127V z=5% ZONA RESIDENCIAL CENTRO COMERCIAL HOSPITAL ZONA INDUSTRIAL ZONA INDUSTRIAL ZONA INDUSTRIAL ZONA INDUSTRIAL 750 KVA 13.8/220/127V z=6.6% 2500 KVA 13.8/220/127V z=6% 10000 KVA 13.8/220/127V z=7% ZONA HABITACIONAL 52-A11 52-A21 52-1 T3 T4 T5 T6 TA C.P. FECHA \T4.00000;REVISIONES MCA DESCRIPCION FECHA POR NUM. \T1.70000;DIBUJOS DE REFERENCIA DIB. ELAB. EN: VERACRUZ, VER. MEX. 02/06/2014 DIBUJO ESC.: 1:100 E-001 REV. A PARA REVISION Y APROBACION A CAD ING. DIEGO A. ROSALES DIAZ ACOT. EN: MTS No. PROYECTO: 0001 SUBESTACION ELECTRICA 230 KV www.iepeiluminacion.com diego@iepeiluminacion.com SUBESTACION VISTA LATERAL HILO DE GUARDA SUBESTACION VISTA SUPERIOR FASE 1 FASE 2 FASE 3 INTERRUPTOR T.P. T.C. APARTARRAYOS CUCHILLAS TRANSFORMADOR BUS 230 KV BUS 13.8 KV TRANSFORMADOR INTERRUPTOR T.P. T.C. CUCHILLAS APARTARRAYOS 20 MVA 230/13.8 KV z=10% BUS 13.8 Kv 3 x 500 Kcmil desnudo 3 x 2 AWG desnudo 3 x 500 Kcmil desnudo 3 x 2 AWG desnudo 3 \U+0278 x 4 AWG Conductor Vulcanizado con aislanete XLP 3 \U+0278 x 4 AWG Conductor Vulcanizado con aislamiento XLP 3 \U+0278 x 2 AWG Conductor Vulcanizado con aislamiento XLP 3 \U+0278 x 4 AWG Conductor Vulcanizado con aislamiento XLP 3 \U+0278 x 4 AWG Conductor Vulcanizado con aislamiento XLP 3 \U+0278 x 350 Kcmil Conductor Vulcanizado con aislanete XLP 3 \U+0278 x 350 Kcmil Conductor Vulcanizado con aislanete XLP 3 \U+0278 x 350 Kcmil Conductor Vulcanizado con aislanete XLP 3 \U+0278 x 350 Kcmil Conductor Vulcanizado con aislanete XLP BUS 13.8 Kv TRANSFORMADOR INTERRUPTOR CUCHILLAS BUS APARTARRAYOS SIMBOLOGIA A TAB. "GENERAL" CAL. 4/0 AWG=107,2mm2=211,6KCM= 0,01326MTS DE DIAM. EN EL DETALLE "A" PARA LLEGAR A UN VALOR MAXIMO DE 5 OHMS POR LO QUE SE REQUERIRA APLICAR UN MEJORADOR DE TIERRA ALREDEDOR DE CADA VARILLA COPPER WELD COMO SE INDICA LONGITUD DE LOS CONDUCTORES ENTERRADOS 1 + SUPONIENDO UNA RESISTENCIA DE 100 OHMS METRO 8,18 OHMS 6,00 M Ver detalle "A" 2 1 3 5 3 4 3 5 3 2 5 5 2 5 4 1 3 5 6,00 M 1 3 R = 8,18 Ohms Rg=P (100) RESISTENCIA RESISTENCIA 20 X A(36) L(60,20) 1 + 1 2,00 M 2 5 2 3 5 3 Y SUBESTACION 3 5 1 P = 100 Ohms/M PROFUNDIDAD DE LOS CONDUCTORES L = 48+(4 X 3,05) = 60,20 M AREA DEL SISTEMA DE TIERRA A = 36 M2 D = 2,00 M h = 0,45 M DISTANCIA RESISTIVIDAD DEL TERRENO MALLA DE SUBESTACION FORMULA APROXIMADA 20 è ç Rg 1 1 P L = + æ ç ç ç 1 A + è ç ø ÷ ø ÷ ö ÷ ÷ ÷ 1 1 20 A h + æ ç ç ç = ö ÷ ÷ ÷ 20/A(36) 1 + h(0,45) X 1 0.40 Mts. 1 Tapa de registro Mejorador de tierra (TIPO GEM) Varilla cobrizada por soldadura de 16MM x 3048MM Cable de cobre de malla de tierra a no menos de 0.35 Mts. Bajo el nivel de piso DETALLE "A" 0.40 Mts. PLANTA Conexion Cadweld tipo GY y varilla cobrizada por soldadura de 16MM. Conexion Cadweld o conexion a estructuras o otros sistemas de tierra Conexion Cadweld tipo TAC para Cal. 4/0 Cat. TAC-2Q2Q Conexion Cadweld tipo XAC Cable de cobre desnudo Cal. 4/0 AWG 2 4 3 5 por 3048 MM. 1 MALLA DE TIERRA FISICA
