Dihedral System DWG Block for AutoCAD

Dihedral System DWG Block for AutoCAD

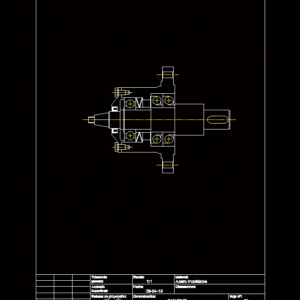

dihedral system a mechanical assembly.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

general tolerance :, material: stainless steel, surface finish :, dimensions:, revised by: maita f. david, drawn by: fermadez fields, nominal height :, projection system :, maximum height :, minimum height:

Raw text data extracted from CAD file:

N8 3.2 N5 0.4 N6 0.8 N9 6.3 N4 0.2 Tolerancia general: Escala: 1:1 Material: Acero Inoxidable Acabado Superficial: Fecha: 09-04-13 Dimensiones: Hoja Nº: 01 Revisado por: Maita F. David Denominaciòn: SAE 2045 Dibujado por: Fermadez Campos Cota nominal: Sistema de proyección: Cota máxima: Cota mínima: \W2.63984; TECSUP

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	ASSEMBLY, autocad, block, DWG, le tuyau, mechanical, parafusos, pipe, robinet, rohr, schraub, screw, system, tubos, valve, válvulas, ventil, vis
