Educational Tourist Center 2D DWG Design Elevation for AutoCAD

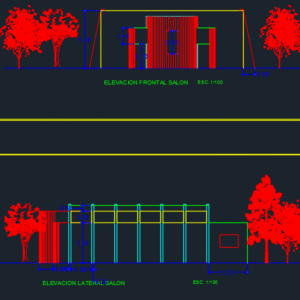

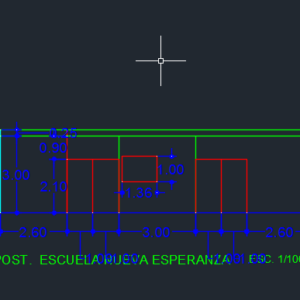

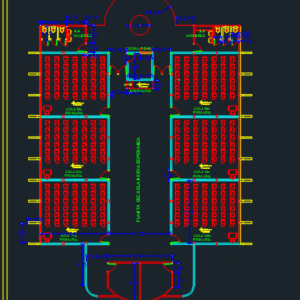

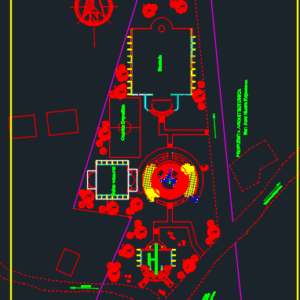

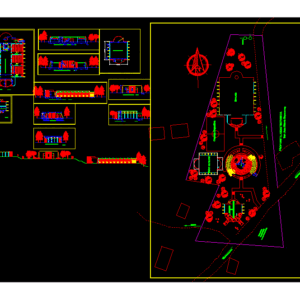

This is the development of an educational tourist center that is constituted by three main buildings a health unit, communal hall, school, green areas, parks, sports court. This design includes the floor plans, elevation and section.

Language Spanish
Drawing Type Elevation
Category
Additional Screenshots



File Type dwg, zip
Materials Concrete, Steel
Measurement Units Metric
Footprint Area Over 5000 m² (53819.5 ft²)
Building Features Garden / Park
Tags , , , , , , , , , , , , , , , , , ,
