Electric Connector DWG Block for AutoCAD

Electric Connector DWG Block for AutoCAD

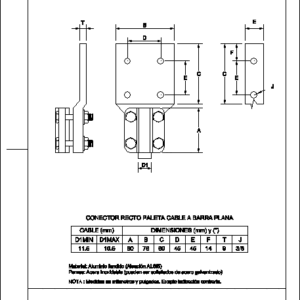

Electric connector

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Straight pallet mcm primary substation kv., cable, dimensions, Flat straight cable, Note measures in millimeters inches. Otherwise., Material: Cast Aluminum Bolts: Stainless Steel Be Requested Steel

Raw text data extracted from CAD file:

\A1;T \A1;B \A1;D \A1;E \A1;C \A1;A \A1;E \A1;C \A1;J \A1;E \A1;F \A1;D1 T B D E C A E C J E F D1 \A1;Conector Recto Paleta 4/0 \H1x;AWG a 500 MCM \H0.9999x;dmat-101 Subestación Primaria 110 kV. CABLE (mm) DIMENSIONES (mm) y (") D1MIN D1MAX D F J 11.5 16.5 45 14 9 CONECTOR RECTO PALETA CABLE A BARRA PLANA A B C 60 78 80 T 3/8 E 45 NOTA : Medidas en milimetros y pulgadas. Exepto indicación contraria. Material: Aluminio fundido (Aleación ALSI5) Pernos: Acero Inoxidable (pueden ser solicitados de acero galvanizado)

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel, Other
Measurement Units
Footprint Area
Building Features
Tags	alta tensão, autocad, beleuchtung, block, connector, détails électriques, detalhes elétrica, DWG, electric, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, torre, tower, treatment plant, turm
