Electrical Connection DWG Detail for AutoCAD

Electrical Connection DWG Detail for AutoCAD

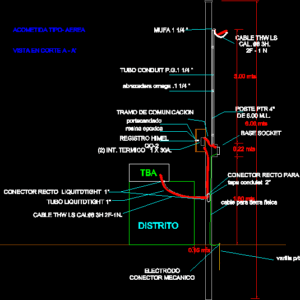

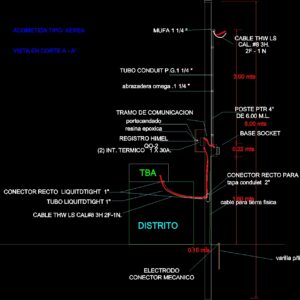

DETAIL TO DROP ELECTRIC AIR CONTROLLER TELECOM INFRASTRUCTURE TEAM TELEFONICA

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Mts, Socket base, Heel registration, Post ptr, Electrode mechanical connector, Air attack, Int. thermal, Thw ls, Thw ls cable, lime., Conduit, Of m.l., Stretch of communication, district, Tba, Cut view to ‘, Mts, Liquid tube, Straight connector liquidity, Ground wire, omega, dipstick, Mts, Straight tube connector. Liquidtight, Lid condulet, Holder, Epoxy resin

Raw text data extracted from CAD file:

6.00 mts 0.22 mts 1.60 mts BASE SOCKET REGISTRO HIMEL QO-2 POSTE PTR 4" ELECTRODO CONECTOR MECANICO ACOMETIDA TIPO- AEREA (2) INT. TERMICO 1 X 30A. \A1;CABLE THW LS CAL#8 3H 2F-1N. \A1;MUFA 1 1/4 " CABLE THW LS CAL. #8 3H. 2F - 1 N \A1;TUBO CONDUIT P.G.1 1/4 " DE 6.00 M.L. TRAMO DE COMUNICACION DISTRITO TBA VISTA EN CORTE A - A' 0.15 mts TUBO LIQUITDTIGHT 1" CONECTOR RECTO LIQUITDTIGHT 1" cable para tierra fisica \A1;abrazadera omega .1 1/4 " varilla p/tierra 3.00 mts CONECTOR RECTO PARA TUBO. LIQUIDTIGHT 1" tapa condulet 2" portacandado resina epoxica

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	air, autocad, connection, controller, DETAIL, drop, DWG, einrichtungen, electric, electrical, electrical connection, facilities, gas, gesundheit, infrastructure, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, team, telecom, wasser bestimmung, water
