Emergency Shower & Eyewash Station Detail Drawing with Stainless Steel Components

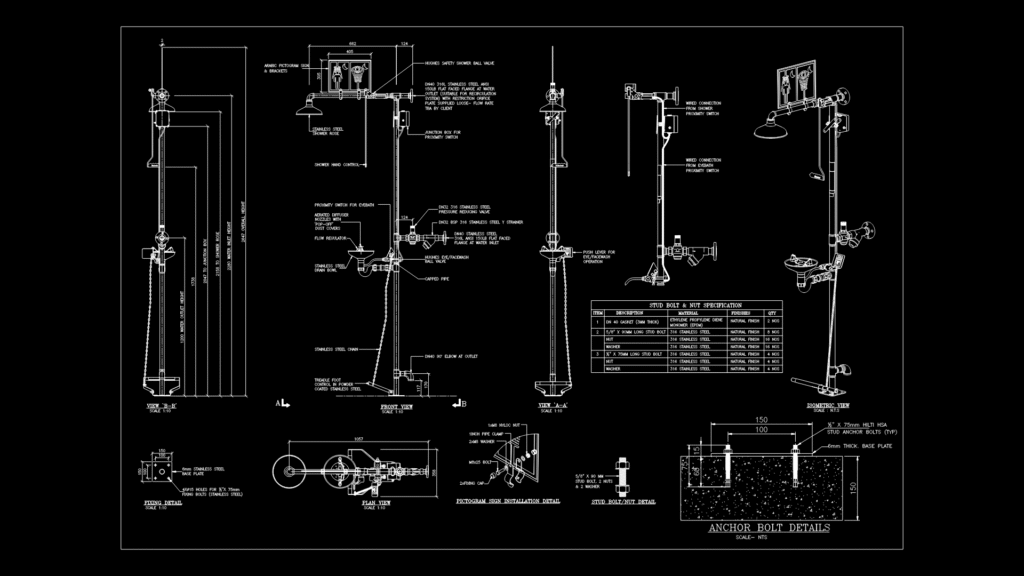

Comprehensive detail drawing of an ANSI-compliant emergency shower and eyewash station featuring stainless steel construction. This assembly includes an overhead shower with pull-handle activation mechanism mounted at 82″ height, and integrated eyewash fountain with proximity sensor activation. The piping system utilizes 1″ stainless steel with ball valves for both shower and eyewash components. The unit incorporates a flow regulator and separate hand-held drench hose with spray nozzle. Multiple views (front, side, isometric) provide installation clarity, with detailed anchor bolt specifications (M8 x 75mm) and base plate mounting (150mm x 150mm). Connection points for water supply (3/4″ inlet) and drainage are clearly indicated. The design follows laboratory safety standards with ergonomic considerations for emergency decontamination needs; pressure requirements are specified for optimal spray pattern delivery. Anchoring details show concrete embedment requirements for secure installation in industrial environments.
