Family Restaurant 2D DWG Design Section for AutoCAD

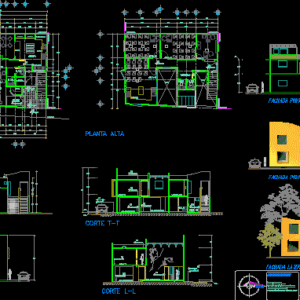

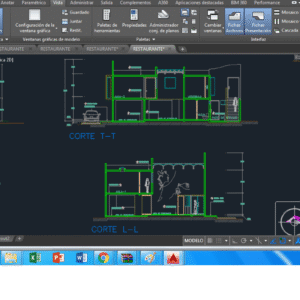

This Family Restaurant consists of two floors, on the first floor is the dining area, two bathrooms, kitchen, reception, two pantries, freezing and cooling area. On the second floor are two bathrooms, kitchen, an office and three work classrooms, in this section plane you can see the main facade and side with their respective cuts
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
     |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | 150 - 249 m² (1614.6 - 2680.2 ft²) |
| Building Features | A/C |
| Tags | 2d, autocad, Design, DWG, facades, Family, inn, kitchen, plants, RECEPTION, Restaurant, section, sections, two floors |
