Fixture Brickwork DWG Block for AutoCAD

Fixture Brickwork DWG Block for AutoCAD

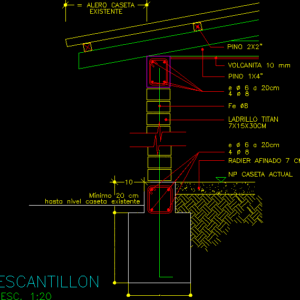

straightedge to cosntrucciones type 1 floor, from the foundation to the roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

escantillon, esc., minimum cm, up to existing house level, np current house, radier tuned cm, brick titan, existing, eaves house, volcanite mm, Pine tree, Pine tree

Raw text data extracted from CAD file:

\A1;35 \A1;40 Fe d8 -6337407.898117261 ESCANTILLON ESC. 1:20 Minimo 20 cm hasta nivel caseta existente -6337407.898117261 10 NP CASETA ACTUAL RADIER AFINADO 7 CM 4 d 8 LADRILLO TITAN e d 6 a 20cm 7X15X30CM EXISTENTE = ALERO CASETA VOLCANITA 10 mm 4 d 8 PINO 1X4" e d 6 a 20cm PINO 2X2"

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
