Flat Roof Invested Passable DWG Section for AutoCAD

Flat Roof Invested Passable DWG Section for AutoCAD

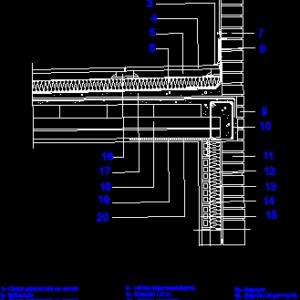

Section – Detail connection with walls – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

galvanized finish plate, plastered, galvanized finish plate, protection, transitable pavement, camera, isolation, foot of l.c.v., waterproofing sheet, plated l.c.v., perimeter zuncho, foot of l.c.v., plastered, isolation, l.h.s., plaster, pavement support, concrete pendant, forged, isolation, plaster

Raw text data extracted from CAD file:

\A1;4 \A1;6 \A1;11.5 \A1;1.5 4 6 1 11.5 1.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.- Chapa galvanizada de remate 2.- Enfoscado 3.- Chapa galvanizada de remate y protección 4.- Pavimento transitable 5.- Cámara 6.- Aislamiento 7.- 1/2 Pie de L.C.V. 8.- Lámina impermeabilizante 9.- Chapado L.C.V. 10.- Zuncho perimetral 11.- 1/2 Pie de L.C.V. 12.- Enfoscado 13.- Aislamiento 14.- L.H.S. 15.- Enlucido 16.- Soporte del pavimento 17.- Hormigón de pendiente 18.- Forjado 19.- Aislamiento 20.- Enlucido

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, connection, cover, dach, DETAIL, DWG, flat, hangar, invested, lagerschuppen, passable, roof, section, shed, specifications, structure, technical, terrasse, toit, walls
