Geodesic Gallery DWG Section for AutoCAD

Geodesic Gallery DWG Section for AutoCAD

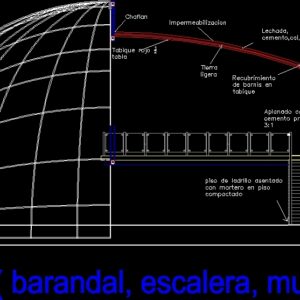

Section of a gallery, which includes a Geodesic. Covering one of the spaces. The staircase leads to the second floor supported by a column. Which is defined by a single rail forming a double height. With a brick vault. and confined to a tank of strip footing construction.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

waterproofing, grout, cement, lime, sand, flattened sand cement, running shoe, chain of rebar, chamfer, gutter, light soil, brick floor settled with mortar in compacted floor, coating barnis in partition

Raw text data extracted from CAD file:

Impermeabilizacion corte ( barandal, escalera, muro). \A1;Tabique rojo \A1;\S1/2; \A1;tabla Lechada, cemento,cal,arena Tabique rojo recocido 7x14x28 pegado con mortero cemento arena prop 3:1 aplumo. Aplanado cemento arena zapata corrida Cadena de desplante Impermeabilizacion Chaflan Canalon Aplanado cal, cemento prop 3:1 Tierra ligera piso de ladrillo asentado con mortero en piso compactado 0,7 0,15 Recubrimiento de barnis en tabique

Language	Spanish
Drawing Type	Section
Category	Misc
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Imperial
Footprint Area
Building Features
Tags	autocad, covering, DWG, floor, gallery, geodesic, geodesics domes, includes, railing, section, spaces, staircase, supported
