Greenhouse Building DWG Plan for AutoCAD

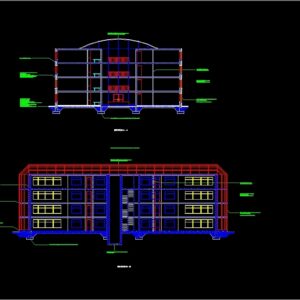

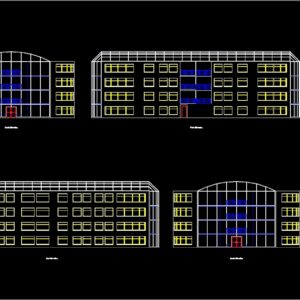

Building for cold climates. Section and elevation plans.
Drawing labels, details, and other text information extracted from the CAD file:
tara call line, line, line, spd, hold, mic, fla, icm, feat, mon, living room, kitchen, bedroom, bathroom, lift, rubbish chute, down, bedroom, bathroom, living room, kitchen, living room, bathroom, kitchen, bedroom, kitchen, living room, bedroom, bathroom, bedroom, bathroom, bedroom, cleaners room, storage, lift, switch room, rubish chute exit, down, bedroom, bathroom, bedroom, living room, kitchen, living room, kitchen, living room, kitchen, living room, bathroom, bedroom, kitchen, bedroom, bathroom, bedroom, bathroom, bedroom, kitchen, living room, first floor plan, ground floor plan, specification: ground floor slab: screed on min. concrete slab on rigid insulation with rigid insulation perimeter upstand on d.p.m turned up at edges and overlapped with d.p.c in wall on sand blinding on well compacted consolidated hardcore to architects specifications containing sump radon vent pipe as required radon: allowances to be made for the activation of radon mitigation system if the need arises after construtcion wall decorative sandstone brick outer leaf with cavity with rigid insulation fixed to solid concrete block inner leaf by means of galvanised wall ties at appropriate centers with internal plaster and skim finish floor construction: brethan slab to engineers spec concrete internal walls: solid concrete block with plaster and skim finish on either side timber stud partition: timber stud partition comprising timber studs with plasterboard fixed to either side windows doors: all external windows and doors to be polyester powder coated aluminium with double glazing. powder coating colour to be pantone ventilation: background ventilation yo be provided to all habitable rooms of not less than sq. mm all bathrooms and kitchens to be mechanically ventilated ventiliation for central area to be provided by openings in the glazed roof by retractable to engineers spec. lift shaft: lift shaft constructed from precast reinforced concrete pillars to lift engineers spec roof construction: glass roof constructed from aluminium frame to engineers spec curved solar reflecting glass manafactured to spec., j.m., drawing no., drawn:, date:, scale:, plans, apartment scheme, location, project, drawing, client, ground floor first floor, juan menares, architect, specification: ground floor slab: screed on min. concrete slab on rigid insulation with rigid insulation perimeter upstand on d.p.m turned up at edges and overlapped with d.p.c in wall on sand blinding on well compacted consolidated hardcore to architects specifications containing sump radon vent pipe as required radon: allowances to be made for the activation of radon mitigation system if the need arises after construtcion wall decorative sandstone brick outer leaf with cavity with rigid insulation fixed to solid concrete block inner leaf by means of galvanised wall ties at appropriate centers with internal plaster and skim finish floor construction: brethan slab to engineers spec concrete internal walls: solid concrete block with plaster and skim finish on either side timber stud partition: timber stud partition comprising timber studs with plasterboard fixed to either side
Raw text data extracted from CAD file:
| Language | English |
| Drawing Type | Plan |
| Category | Condominium |
| Additional Screenshots |
    |
| File Type | dwg |
| Materials | Concrete, Glass |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | apartment, autocad, building, cold, condo, Condos, DWG, eigenverantwortung, elevation, Family, greenhouse, group home, grup, mehrfamilien, multi, multifamily housing, ownership, partnerschaft, partnership, plan, plans, section |
