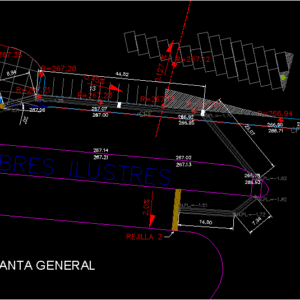

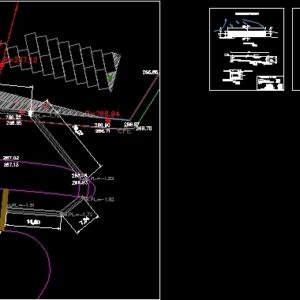

Project a storm grate at the entrance to a parking lot. Contains the plant cuttings; detail armed as well as details of the pipeline through a drawer box armed with sticks and their respective quantization

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cfe, av. Illustrious men, Cm rod of diam. in both ways, cut, Grille detail, Without esc., variable, Movable grid, Acot. In m, rack, Cm rod of diam. in both ways, cut, Grille detail, Grid plant, Esc., Without esc., variable, Movable grid, pavement, Cm rod of diam. in both ways, cut, Esc., Beam, Movable grid, Acot. In m, mattress, drawer, armed, mattress, Armed drawer, Grid plant, Esc., Acot. In m, Camellon, sidewalk, Grids, welding, Anchors, dipstick, Of diam. Of cms. Long., channel of, For support, Of grids, Beam, Anchors, dipstick, Of diam. Cm. Long., Beam, Welded, Channels of, Beam, For support, Of grids, Thickness of skate, soul, Thickness of the soul, Thickness of skate, soul, Detail of the anchors, Acot. In cm., Support detail of the grids, Acot. In mm., beam, Rectangular profile, Acot. In mm., beam, Standard profile, Acot. In mm., Channel profile standard, Acot. In mm., See anchors detail, See grid support detail, See anchors detail, See grid support detail, Beam, Movable grid, Garrison, Camellon, Garrison, sidewalk, cut, Esc., Acot. In m, general plant, Axis of the work, Armored drawer detail, J.c., Var, detail, Var, Var, Var, Var, Var, Var, total, Var, Var, Var, weight, Long, Num., Var, List of rods, Long, Long, excavation, amounts of work, Reinforcing steel kg, Concrete in drawer, filling, Road, Mattress min cms, Var, J.c., Var, detail, Var, Var, Var, Var, Var, total, Var, weight, Long, Num., Var, List of rods, Long, Long, Var, Var, excavation, amounts of work, Reinforcing steel kg, Concrete in drawer, filling, sidewalk, Axis of the work, In road, Armored drawer detail, On bench, amounts of work, excavation, Reinforcing steel, concrete, rack, Beam, Beam, Grid trough, Grid frame trough, Cm rod of diam. in both ways, excavation, Reinforcing steel, concrete, rack, Beam, Beam, Grid trough, Grid frame trough, Registration covers, Reinforcing steel in both, concrete, sidewalk, Padding, Armed drawer, manhole cover, Block wall, Var, Block of, Pzas, sidewalk, plant, cut, Detail of drawer armed in road, Detail of drawer armed on sidewalk, amounts of work

Raw text data extracted from CAD file:

14,80 7,34 20° 44,82 23,07 8,94 CFE CFE CFE AV. HOMBRES ILUSTRES 266.70 266.87 R=266.94 0.127 % 13 266.86 266.90 266.92 266.85 267.07 267.00 267.27 267.15 266.71 267.36 267.47 267.14 267.21 267.02 267.13 266.78 266.93 R=267.23 R=267.38 R=267.08 0.54 % R=267.13 266.90 266.92 266.85 267.07 267.00 266.71 266.70 266.87 267.14 267.21 267.02 267.13 266.78 266.93 R=267.12 R=267.35 0.45% 267.06 R=267.21 R=267.28 2.0% 2.0% 5 5 VARILLA 1.27 cm (1/2") DE DIAM. @ 30CM EN AMBOS SENTIDOS CORTE B - B` DETALLE DE REJILLA 2 SIN ESC. 0.30 0.80 0.30 VARIABLE REJILLA MOVIBLE Acot. en m. REJILLA 1 REJILLA 2 VARILLA 1.27 cm (1/2") DE DIAM. @ 30CM EN AMBOS SENTIDOS CORTE B - B` DETALLE DE REJILLA 1 PLANTA DE REJILLA ESC. 1:100 SIN ESC. 1.40 10.00 0.30 0.80 0.30 VARIABLE REJILLA MOVIBLE B B` A A` PAVIMENTO -0.65% VARILLA 1.27 cm (1/2") DE DIAM. @ 30CM EN AMBOS SENTIDOS CORTE A - A` ESC. 1:100 10.00 0.30 1.41 0.9\fArial|b0|i0|c238|p34;0 Viga I de 10.16cm (4") REJILLA MOVIBLE Acot. en m. Acot. en m. Acot. en m. COLCHON 0.30 0.21 1.00 0.21 CAJON ARMADO (VER DETALLE) 11\fArial|b0|i0|c238|p34;.00 COLCHON 0.30 0.21 1.00 0.21 CAJON ARMADO (VER DETALLE) PLANTA DE REJILLA ESC. 1:100 Acot. en m. 1.40 CAMELLON BANQUETA 11\fArial|b0|i0|c238|p34;.00 A' A B B` 2 15 10 5 6.8 15 5 91.6mm 20mm 3 4 ) Rejillas Soldadura ( '' 101.6mm (4") 101.6mm(4") (2 ) 101.6mm(4") 152.4mm (6") 70.1mm 3 4 '' Anclas de varilla 1.90cm de Diam. de 20 cms. de long. Canal de 10.16cm (4") para apoyo de rejillas Viga I de 10.16cm (4") Anclas de varilla 1.27cm de Diam. de 12 cm. de long. 1 2 ) ( '' Viga I de 101.6mm. (4'') soldadas a los canales de 101.6mm. (4") Viga I de 152.40mm (6") para apoyo de rejillas 152.4mm. Espesor del Patin y Alma = 8mm Espesor del Alma = 6mm Espesor del Patin = 10mm Espesor del Patin y Alma = 8mm DETALLE DE LAS ANCLAS S/ESC. Acot. en cm. DETALLE DE APOYO DE LAS REJILLAS S/ESC. Acot. en mm. VIGA I PERFIL RECTANGULAR Acot. en mm. VIGA I PERFIL ESTANDAR Acot. en mm. CANAL PERFIL ESTANDAR Acot. en mm. 25.4mm (1") VER DETALLE DE ANCLAS VER DETALLE DE APOYO DE REJILLAS VER DETALLE DE ANCLAS VER DETALLE DE APOYO DE REJILLAS -2.00% Viga I de 10.16cm (4") REJILLA MOVIBLE 0.30 0.9\fArial|b0|i0|c238|p34;0 GUARNICION CAMELLON 0.30 0.9\fArial|b0|i0|c238|p34;0 GUARNICION BANQUETA 1.41 1.41 CORTE A - A` ESC. 1:100 Acot. en m. PLANTA GENERAL 5 5 5 Eje de la obra DETALLE DE CAJON ARMADO 21 21 100 8 o 25 21 21 100 J.C. J.C. J.C. J.C. 10 10 4 4 8 o Var F Var I Var E Var A Var G Var C Var D Var B Var E Var H DETALLE 4 0.95 Var I 40.5 8 0.95 Var H 36.5 36.5 Var G 0.95 16 69 121 Var E 0.95 18 7 0.95 Var F 23 192 0.95 Var D 2,807.25 TOTAL 120 0.95 23 Var C 120 1.27 17 Var B 120 1.59 23 Var A PESO @ LONG. d NUM. VAR LISTA DE VARILLAS 197 320 472 472 159 5415 5415 5415 5415 441.71 382.46 315.49 504.78 107.16 211.13 482.58 241.29 120.65 LONG. \A1;r 120 36 121 \A1;r LONG EXCAVACION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 201.44 m3 CANTIDADES DE OBRA ACERO DE REFUERZO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 2,807.25 kg CONCRETO EN CAJON DE f'c=200 kg/cm2 . . . . . . . . . . . . . . . . . . . . . . . . . . = 56.32 m3 RELLENO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 95.30 m3 VIALIDAD COLCHON = MIN 30 CMS Var C Var A 4 J.C. J.C. J.C. J.C. 10 10 Var E Var B Var F Var D Var G DETALLE 0.95 Var G 14 18 Var F 0.95 42 54 121 Var D 0.95 36 0.95 Var E 18 189 0.95 Var C 2,493.40 TOTAL 120 0.95 18 Var B 120 0.95 14 PESO @ LONG. d NUM. VAR LISTA DE VARILLAS 121 4482 4482 LONG. \A1;r 117 36 121 \A1;r LONG 21 21 100 8 o 25 21 15 8 o 4 4 4 30 30 30 30 Var F Var F 5 Var A 16 321 214.56 249 166.43 498 524.26 83 55.94 125 84.25 1048.52 399.44 EXCAVACION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 140.29 m3 CANTIDADES DE OBRA ACERO DE REFUERZO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 2,493.40 kg CONCRETO EN CAJON DE f'c=200 kg/cm2 . . . . . . . . . . . . . . . . . . . . . . . . . . = 42.58 m3 RELLENO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 53.78 m3 N.PL.=-1.51 N.PL.=-1.56 N.PL.=-1.70 N.PL.=-1.82 N.PL.=-1.51 N.PL.=-1.82 N.PL.=-1.72 BANQUETA Eje de la obra EN VIALIDAD DETALLE DE CAJON ARMADO EN BANQUETA - CANTIDADES DE OBRA Excavacion = Acero de refuerzo (varillas de 1/2")= Concreto f'c=200 kg/cm2 = 32.94 M3 263.49 KG 12.02 M3 Rejilla = Viga I de 6" = 261.80 KG Viga I de 4" = 1,253.79 KG Canalete para Rejilla = 364.83 KG Canalete para Marco de Rejilla = 270.65 KG VARILLA 1.27 cm (1/2") DE DIAM. @ 30CM EN AMBOS SENTIDOS Excavacion = Acero de refuerzo (varillas de 1/2")= Concreto f'c=200 kg/cm2 = 36.20 M3 289.84 KG 13.49 M3 Rejilla = Viga I de 6" = 287.98 KG Viga I de 4" = 1,379.17 KG Canalete para Rejilla = 401.31 KG Canalete para Marco de Rejilla = 297.72 KG - 2 TAPAS DE REGISTRO Acero de refuerzo (varillas de 3/8" @ 20CM EN AMBOS SENTIDOS)= Concreto f'c=100 kg/cm2 = 12.48 KG 0.14 M3 BANQUETA RELLENO DE BANQUETA CAJON ARMADO TAPA DE REGISTRO DE 15 X 20 X 40 MURO DE BLOCK 0.21 0.10 0.21 1.00 VAR Block de 15 x 20 x 40 = 52 pzas. BANQUETA BANQUETA PLANTA CORTE DETALLE DE CAJON ARMADO EN VIALIDAD DETALLE DE CAJON ARMADO EN BANQUETA - CANTIDADES DE OBRA
