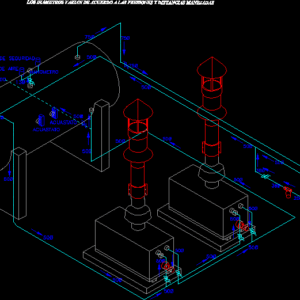

Hot water system – Isometric view

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Drainage line, Hot water return, cold water, Hot water, Aquastate, pressure gauge, Aquastate, Air release valve, security valve, The diameters vary according to the pressures distances handled

Raw text data extracted from CAD file:

50d 50d 13d 50d 50d 50d 50d 50d LINEA DE DRENADO RETORNO DE AGUA CALIENTE AGUA FRIA AGUA CALIENTE 75d 50d 50d 50d 50d 50d 50d 50d 50d 50d 75d 50d 38d 50d 38d 50d 75d 25d 50d 75d 50d 50d 50d ACUASTATO MANOMETRO ACUASTATO VALVULA ELIMINADORA DE AIRE VALVULA DE SEGURIDAD LOS DIAMETROS VARIAN DE ACUERDO A LAS PRESIONES Y DISTANCIAS MANEJADAS

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
