House DWG Section for AutoCAD

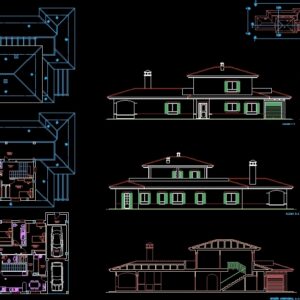

House – Plants – Sections – Elevations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ground floor, upper floor, longitudinal section a-a, cross section b-b, roof plan

Raw text data extracted from CAD file:

TERRAZA 2 17.11m² TERRAZA 1 28.53m² PASILLO 2 5.24m² ESCALERA 7.33m² BAÑO 3 6.00m² DORMITORIO 4 11.94m² DORMITORIO 5 12.78m² PORCHE 2 20.12m² SALÓN COMEDOR 40.01m² VESTIBULO 12.95m² PORCHE 1 3.53m² COCINA 21.18m² ASEO 2.58m² PASILLO 6.05m² BAÑO 2 6.65m² DORMITORIO 3 14.62m² PLANCHA 5.01m² CALDERA 3.28m² DESPENSA 1.58m² COCHERA 15.00m² TRASTERO 4.50m² DORMITORIO 2 12.42m² VESTIDOR 8.45m² BAÑO 1 7.81m² DORMITORIO 1 13.41m² PLANTA BAJA PLANTA ALTA ALZADO 1-1 SECCIÓN LONGITUDINAL A-A SECCIÓN TRANSVERSAL B-B ALZADO 2-2 ALZADO 3-3 ALZADO 4-4 3 3 4 4 A A B B 1 1 2 2 PLANTA DE CUBIERTA

Language	Spanish
Drawing Type	Section
Category	House

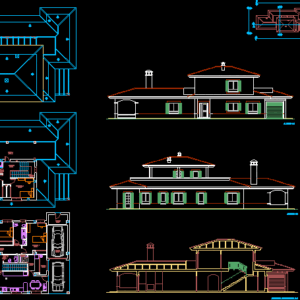

Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	apartamento, apartment, appartement, aufenthalt, autocad, casa, chalet, dwelling unit, DWG, elevations, haus, house, logement, maison, plants, residên, residence, section, sections, unidade de moradia, villa, wohnung, wohnung einheit
