Hydraulic Hole Puncher Assembly Model with C-Frame design

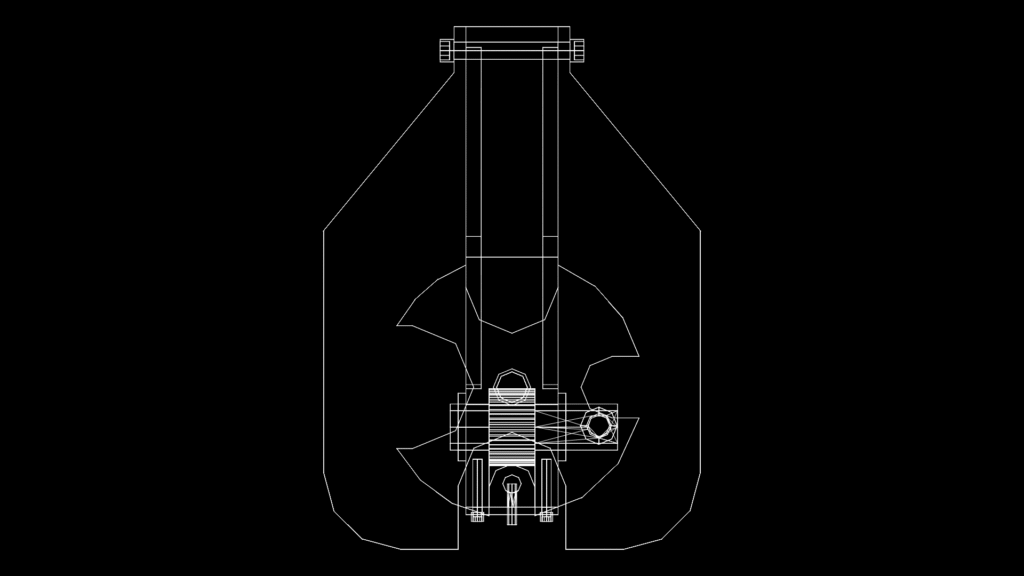

This drawing depicts a vertical hydraulic puncher assembly with a robust C-frame design. The machine features a rigid frame structure with an approximate height of 945 mm and width of 245 mm, designed to provide stability during operation. The puncher consists of a central vertical guide mechanism that houses the punching tool, supported by two parallel guide columns. The lower portion contains the hydraulic cylinder assembly with connection ports, responsible for driving the punch mechanism with precision. The C-shaped frame provides excellent access to the work area while maintaining structural integrity for high-force applications. The design incorporates mounting points at the top for securing to support structures and includes clearance at the bottom for material positioning. The punching mechanism features replaceable dies and tooling components, allowing for versatility in different punching operations. The overall construction suggests industrial-grade durability, with the frame designed to absorb vibration and maintain alignment during operation cycles.
