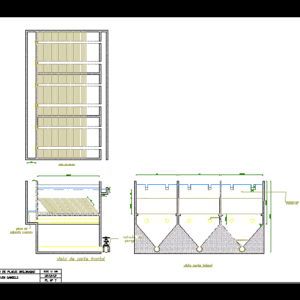

Plate Settler Inclined, 2 1 design and safety in case of failure or cleaning. Plan – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

asbestos cement board, front cut view, thickness gauge, valve, purge, side view, pvc of thickness thickness, plant view, third unit in case of emergency fails, darwin daniels, slant plate settler, pl no, esc

Raw text data extracted from CAD file:

0,3 0,3 0,2 0,5 4,150436 2,522263 2,399999 2,4 2,4 0,6 3,630165 50° 0,596861 0,919249 0,15 0,3 0,5 placa de asbesto cemento 5 5 5 5 vista de corte frontal PVC, Diametro 8", espesor 4mm valvula de purga vista corte lateral 5 5 5 5 5 5 5 5 5 5 5 5 PVC de Diametro 12", espesor 6mm vista de planta 5 tercera unidad en caso de emergencia o falla DARWIN DANIELS SEDIMENTADOR DE PLACAS INCLINADAS 18/10/13 PL Nº 7 ESC 1: 100
