Inclined Roofs With Concrete Tiles Uralita DWG Section for AutoCAD

Inclined Roofs With Concrete Tiles Uralita DWG Section for AutoCAD

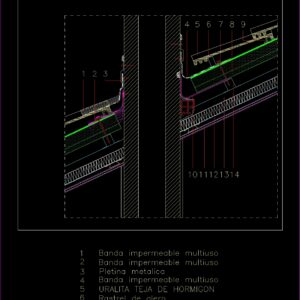

Normal section at slope – Detail connection roof with wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Uralite concrete tile, Uralite uratherm profile granonda, Uralite glass wool, Tracked, Plate fixing, Eaves track, Waterproof multi-purpose band, Flat roof, Metal plate, pair, belt, Frontal encounter with wall, Waterproof multi-purpose band

Raw text data extracted from CAD file:

URALITA TEJA DE HORMIGON URALITA URATHERM PERFIL GRANONDA URALITA lana de vidrio 14 14 Rastrel Fijacion de la placa Rastrel de alero Banda impermeable multiuso Banda impermeable multiuso 8 9 10 9 8 7 6 5 4 10 11 12 13 1 2 3 11 7 Techo PLADUR Pletina metalica 6 5 4 3 2 1 Par (Omega) Correa (Omega) 12 13 ENCUENTRO FRONTAL CON MURO Banda impermeable multiuso Banda impermeable multiuso

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, concrete, connection, cover, dach, DETAIL, DWG, hangar, inclined, lagerschuppen, normal, roof, roofs, section, shed, slope, structure, terrasse, tiles, toit, uralita, wall
