Light Str DWG Section for AutoCAD

Light Str DWG Section for AutoCAD

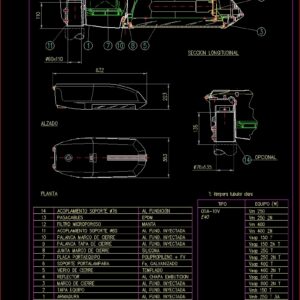

Light str. – Longitudtnal Section – Detail of assembly in column

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

support portalampara, microporous filter, denomination, sealing frame seal, carrier plate, closing glass, closing frame, lever closure cap, locking lever, coupling bracket, reflector, brand, computer cover, armor, polypropylene fv, embossing plate, material, galvanized, silicone, tempered, blanket, luminary:, s.a., Barcelona, checked, v b, drawn:, date, firm, fcv, Madrid, replaced by:, replaces:, equipment, kind, vsap, vmh, vsap, vmh, cable glands, epdm, plant, raised, optional, longitudinal section, coupling bracket, foundry, to the. fund. injected, fund. injected, t: clear tubular lamp

Raw text data extracted from CAD file:

\A1;110 \A1;d60x110 \A1;d76x135 \A1;135 \A1;832 \A1;223 \A1;353 SOPORTE PORTALAMPARA FILTRO MICROPOROSO DENOMINACION JUNTA MARCO DE CIERRE PLACA PORTAEQUIPO VIDRIO DE CIERRE MARCO DE CIERRE PALANCA TAPA DE CIERRE PALANCA MARCO DE CIERRE ACOPLAMIENTO SOPORTE d60 4 REFLECTOR MARCA TAPA EQUIPO ARMADURA 1 3 2 9 6 5 8 7 11 10 12 POLIPROPILENO + FV Al, CHAPA EMBUTICION MATERIAL Fe, GALVANIZADO SILICONA TEMPLADO MANTA LUMINARIA: QSA-10V C.&G. CARANDINI, S.A. BARCELONA Comprobado V.º B.º Dibujado: 18-01-03 Fecha Firma FCV MADRID Sustituido por: Sustituye a: 97273 03008 N. QSA-10V EQUIPO (W) TIPO Vsap 400 2N T Vmh 400 T 4,45A Vmh 150 T Vsap 600 2N T Vsap 600 T Vsap 400 T Vsap 250 2N T Vsap 250 T Vsap 150 2N T Vsap 150 T Vm 400 2N Vm 250 2N Vm 400 Vm 250 Vmh 250 T 3A 13 PASACABLES EPDM E40 353 832 7 PLANTA ALZADO 110 d60x110 11 1 13 2 223 8 10 5 9 12 135 d76x135 14 OPCIONAL SECCION LONGITUDINAL 3 1 6 4 14 ACOPLAMIENTO SOPORTE d76 Al, FUNDICIÓN Al. FUND. INYECTADA Al. FUND. INYECTADA Al. FUND. INYECTADA Al, FUND. INYECTADA Al, FUND. INYECTADA Al, FUND. INYECTADA T: lámpara tubular clara

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	ASSEMBLY, autocad, beleuchtung, column, DETAIL, DWG, equipamentos de iluminação, iluminação, l'éclairage, lamp, lâmpada, lampe, lantern, lanterna, lanterne, laterne, les luminaires, leuchten, light, lighting, Luminaires, section
