Luminaire Pole Tip DWG Block for AutoCAD

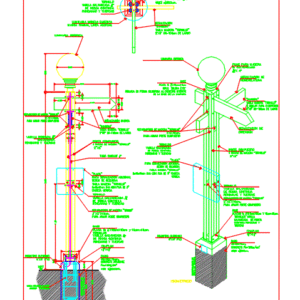

Luminaire installed in pole-top wooden pole 3 meters high; designed for pedestrian trails fractionation.
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
additional fixed wood is required with, of wood arming pole, galvanized rod with continuous thread washers nuts, apparent, on the ground, wood composite pizzas, npt, long wood, wood composite post, threaded nuts, welded base, additional fixed wood is required with head pike, of wood arming pole, galvanized rod with continuous thread washers nuts, wood composite post, galvanized continuous thread, wood composite pizzas, wood similar for outdoor long, on the ground, wood composite arm, galvanized continuous threaded nuts, wood composite pizzas, long wood, elecrico pvc, screws, galvanized rod, continuous thread, lug nuts, plaque faith, plaques faith, The cylindrical shape is cylindrical to the inside diameter of the base of the lamp, for galvanized wood, spherical, conduit, spherical model, galvanized rod with continuous thread washers nuts, local roadway, front elevation, isometric
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Block |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Wood |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | autocad, beleuchtung, block, designed, DWG, equipamentos de iluminação, high, iluminação, installed, l'éclairage, lamp, lâmpada, lampe, lantern, lanterna, lanterne, laterne, les luminaires, leuchten, lighting, luminaire, Luminaires, meters, pedestrian, Pole, poste, trails, wooden |
