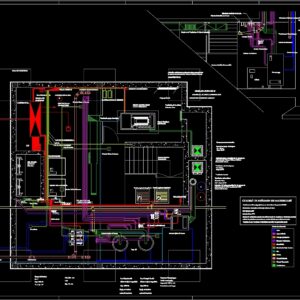

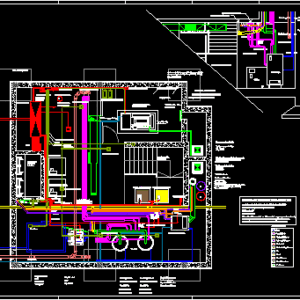

Machines Room DWG Section for AutoCAD
Plant – Section – Sanitary installation (water) Domiciliary connection Pb – Other details
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
machine room, pumping tank, chapter: lts., eq. elev. aut, waterproof well, chapter: lts., vent tt, v., thermotank battery, high recovery, capacity: lts., connected gas network, open security gate., equip pumping, impelling aspirant, boiler ventilation, diameter, b.r., ventilation generator set, ts generator group, generator set, The generator group, tscents, tsbombas, tsheating, lso, ventilation machine room, cm., exhaust combustion gases, boiler ventilation, diameter, Forced ventilation, sheet metal, generator set ventilation, cm., sheet metal, gas meter, of primary socket box, three-phase kva, elevator equipment, insulation: pre-molded foam plates, mat .: sheet metal, insulation: pre-molded polyurethane foam rods, Low voltage batteries, tsbaja tension, transformer, central alarm, cross box, tsb., cb., ls pumps, ls heating, ls fire alarm, lower fa, optical smoke detector, ionic smoke detector, derivation box, perimeter anti-vibration insulation: foam pre-molded plates, perforated plate, upper fa, ls p.e., ls emergency light, concrete base, antivibratory, main board., ls room, machines, circuit room, of machines, stair circuit, cb., Caño Camara, removable metal ladder, bomb, rainwater well, chapter: lts., open security gate., equip pumping, impelling aspirant, under travel, of elevator, hydraulic, reinforced concrete partition, waterproof elastic membrane, rigid membrane mci, ventilations, secondary cloacal, primary sewage, pluvial, gas, low voltage electricity, electricity, heating returns, heating controls, Hot water, Water, material summary box, home sanitary installation heavy pb, brass pipe distribution, cloacal network in hf, pvc pluvial network, central heating system with boiler in circulation machine room, cross-linked polyethylene pipe with synthetic rubber for thermal insulation., gas connection in malleable cast iron pipe with epoxy protection, reference box, hot water tank, boiler, water entrance, cloacal descent, cold water drops, hot water vents, high returns of hot water, collector of stiles, return collector, recirculating pump, storm drain, embedded in the slab, fixings anchored in the slab, machine room ventilation duct, concrete partition, elastic membrane, rigid membrane, removable metal ladder
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Section |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Concrete, Other |
| Measurement Units | |
| Footprint Area | |
| Building Features | Elevator |
| Tags | autocad, connection, details, domiciliary, DWG, einrichtungen, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, machines, maquinas, maschinenrauminstallations, pb, plant, provision, room, Sanitary, section, wasser bestimmung, water |
