Manhole DWG Section for AutoCAD

Manhole DWG Section for AutoCAD

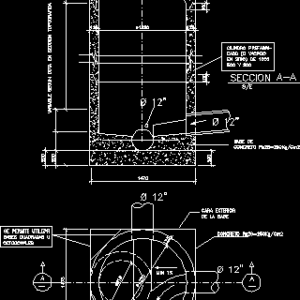

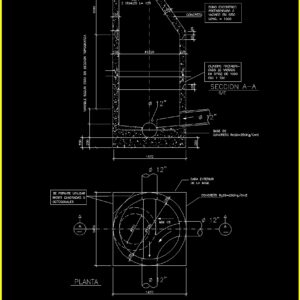

Section of manhole for wastewater maintenance and change direction of water course in the net

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Outer face, Allowed to use, Square bases, Octagonal, from the base, Cover frame, molten iron, concrete, Eccentric cone, prefabricated, Emptying in place, Long, In of, Emptied, cylinder, steel, Same, base of, concrete, plant, section, Min, concrete, Variable according to level in topographic section

Raw text data extracted from CAD file:

CARA EXTERIOR SE PERMITE UTILIZAR BASES CUADRADAS U OCTOGONALES 125 DE LA BASE 1000 125 125 d3/4" 115 50 MARCO Y TAPA DE HIERRO FUNDIDO 65 100 125 140 100 CONCRETO CONO EXCENTRICO PREFABRICADO O VACIADO EN SITIO LONG. = 1000 500 Y 200 EN SITIO) DE 1000 CADO (O VACIADO CILINDRO PREFABRI- d610 ACERO 100 45 d1220 2 IGUALES L= 125 200 BASE DE CONCRETO Rc28=250Kg/Cm2 A 1470 PLANTA A-A SECCION S/E 200 200 1470 MIN 1% d1220 d610 1470 125 CONCRETO Rc28=250Kg/Cm2 A VARIABLE SEGUN COTA EN SECCION TOPOGRAFICA Ø 12" Ø 12" Ø 12" Ø 12" Ø 12"

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, change, direction, DWG, kläranlage, maintenance, manhole, net, section, treatment plant, wastewater, water
