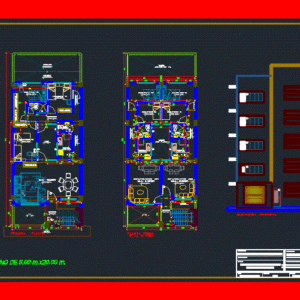

Is a Multifamily Building Project in the city of Chiclayo, Lambayeque in Peru. The project consists of 9 departments Flat rates, which are distributed as follows: 01 Flat Dept of 112.00 m2; presents living – dining room, kitchen, bathroom visits, terrace, 3 bedrooms, bathroom, rear patio. * Flat 02 Depts 56.00 m2 per floor and the 2nd to the 4th floor, and in the living room – dining room, kitchen, bathroom, 2 bedrooms. Presents field only 1 front, as it is surrounded by nearby houses. It has a base income for the departments, and access to 1st Dept is direct while the other 08 Depts served by a vertical movement. The movement of the departments access to the 2nd to the 5th floor balcony viewpoint is proposed as outward. Best forward are visual, while inside the lighting and ventilation problem is solved by a pipeline 2.20m. x 4.00 m and 3.07 mx back yard of 8.00 m.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

level, corridor, empty, typical floor, dining room, sidewalk, patio, first floor, bathroom, kitchen, visit, closet america, budapest wardrobe, central space for led, orleans wardrobe, garden, david entertainment center, main elevation, terrace, r.altamirano t., code:, responsible professional:, location:, cad:, scale:, date:, map:, department: lambayeque, prov. : chiclayo, district: chiclayo, urb. : santa victoria, architecture, blueprint, project:, multifamily building, owner:

Raw text data extracted from CAD file:

+/- Nivel 0.00 V-1 P-1 \A1;8.00 \A1;20.00 \A1;2.20 \A1;1.43 \A1;2.00 \A1;.40 \A1;2.93 \A1;.45 \A1;.53 \A1;1.80 \A1;3.20 \A1;.90 \A1;.60 \A1;1.80 \A1;1.53 \A1;.15 \A1;3.93 \A1;1.70 \A1;4.30 \A1;.60 \A1;1.80 \A1;.53 \A1;1.00 \A1;.75 \A1;2.58 \A1;.75 \A1;.90 \A1;1.80 \A1;.53 \A1;8.00 \A1;20.00 \A1;2.00 \A1;.25 \A1;3.00 \A1;2.93 \A1;.45 \A1;.60 \A1;2.25 \A1;4.50 \A1;.43 \A1;1.00 \A1;1.05 \A1;1.00 \A1;.90 \A1;2.88 \A1;.60 \A1;1.10 \A1;.15 \A1;1.03 \A1;4.00 \A1;2.40 \A1;1.55 \A1;.15 \A1;.85 \A1;1.55 \A1;.15 \A1;.15 \A1;2.40 \A1;.15 \A1;2.10 \A1;.90 \A1;1.65 \A1;1.55 \A1;1.16 \A1;.42 \A1;1.45 \A1;.70 \A1;.75 \A1;.15 \A1;4.08 \A1;2.20 \A1;1.70 \A1;2.88 \A1;2.40 \A1;.15 \A1;1.55 \A1;1.16 \A1;.42 \A1;.75 \A1;.15 \A1;.90 \A1;.60 \A1;1.10 \A1;.15 \A1;1.03 \A1;1.55 \A1;.15 \A1;.85 \A1;1.55 \A1;.15 \A1;.90 \A1;1.65 \A1;1.45 \A1;.70 \A1;1.03 \A1;.15 \A1;3.78 \A1;.15 \A1;3.78 \A1;.15 \A1;8.00 \A1;4.40 \A1;4.55 \A1;3.55 \A1;2.20 \A1;.00 \A1;.60 \A1;1.05 \A1;.90 \A1;2.88 \A1;3.05 \A1;1.55 \A1;.55 \A1;.60 \A1;1.10 \A1;.15 \A1;.15 \A1;.85 \A1;4.50 \A1;1.70 \A1;2.13 \A1;1.50 \A1;2.25 \A1;2.15 \A1;1.83 \A1;.75 \A1;3.78 \A1;1.03 \A1;2.73 \A1;2.73 \A1;2.88 \A1;2.88 \A1;.90 \A1;.90 \A1;1.20 \A1;2.00 \A1;1.60 \A1;2.00 \A1;1.20 5 5 5 + 3.10 DORMITORIO 01 5 5 5 5 5 5 5 V-5 6 5 4 3 2 1 5 CORREDOR + 3.10 5 VACIO 5 5 5 5 5 PLANTA TÍPICA 7 + 0.30 SALA- COMEDOR 5 5 a=2.825 m. a=9.42 m. a= 8.00 m. TERRENO DE 8.00 m.x20.00 m. 5 5 5 5 5 5 P-1 5 5 5 5 5 V-5 6 5 4 3 2 1 5 VEREDA + 0.15 CORREDOR + 0.30 5 PATIO + 0.20 5 5 5 5 5 5 5 PRIMERA PLANTA 7 + 0.30 SALA- COMEDOR 5 5 14 13 12 11 10 9 15 5 8 P-1 P-1 5 5 5 5 5 5 5 5 BAÑO + 3.10 5 V-4 5 5 5 5 5 5 V-4 P-1 + 3.10 COCINA 5 5 5 a=26.80 m. 5 5 5 5 5 5 5 5 P-1 5 + 3.10 DORMITORIO 02 DEPARTAMENTO 201 VACIO + 3.10 CORREDOR 5 5 5 5 5 5 5 5 5 5 V-4 5 5 5 5 5 5 V-4 P-1 5 5 5 5 5 5 5 5 P-1 5 + 0.30 SALA- COMEDOR DEPARTAMENTO 202 + 3.10 COCINA BAÑO + 3.10 + 3.10 CORREDOR + 3.10 DORMITORIO 01 + 3.10 DORMITORIO 02 5 5 5 5 5 5 5 5 5 5 V-4 + 0.30 DORMITORIO 02 5 5 5 5 5 5 5 5 5 V-4 5 5 5 V-4 P-1 5 P-1 5 + 0.30 COCINA 5 5 5 5 + 0.30 DORMITORIO 03 5 + 0.30 DORMITORIO 01 5 BAÑO + 0.30 VISITA V-4 BAÑO + 0.30 5 ROPERO AMÉRICA 1.82X1.53X0.42 m. ROPERO AMÉRICA 1.82X1.53X0.42 m. ROPERO BUDAPEST 1.80X1.90X0.47 m. espacio central para LED ROPERO ORLEANS 1.21X0.47X1.80 m. PATIO + 0.20 JARDIN 5 VACIO VACIO + 0.20 VEREDA + 0.30 CORREDOR + 0.30 CORREDOR + 0.30 CORREDOR A2 - ESCALA 1/75 - ANTEPROYECTO 2° AL 5° PISO CENTRO DE ENTRETENIMIENTO DAVID 1.817X1.40X0.45 m. P-2 P-1 V-1 V-1 V-1 V-1 ELEVACIÓN PRINCIPAL TERRAZA + 0.10 5 5 5 5 5 5 5 5 5 5 5 5 5 R.ALTAMIRANO T. AR-P1 CÓDIGO : PROFESIONAL RESPONSABLE : UBICACIÓN : CAD : 1/75 ESCALA : SETIEMBRE 2013 FECHA : PLANO : Arq°Luis R. Altamirano Távara DPTO : LAMBAYEQUE PROV. : CHICLAYO DISTRITO : CHICLAYO URB. : SANTA VICTORIA ARQUITECTURA ANTEPROYECTO PROYECTO : EDIFICIO MULTIFAMILIAR PROPIETARIO :
