Outline Drawing Sheet DWG Block for AutoCAD

Outline Drawing Sheet DWG Block for AutoCAD

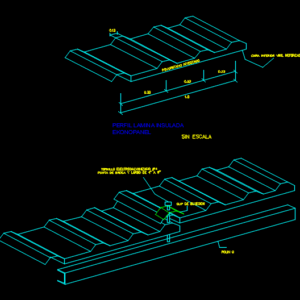

SCHEMME INSULATED DRAWING – REAL DIMENSIONS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

profile lamin insulated ekonopanel, injected, inferior reinforced vinyl, of subjection, electrogalvanized drill tip long, detail of overlap of laminates union with polin, scale

Raw text data extracted from CAD file:

PERFIL LAMINA INSULADA EKONOPANEL \A1;POLIURETANO INYECTADO \A1;0.33 \A1;0.33 \A1;0.33 \A1;1.0 \A1;0.13 \A1;CARA INFERIOR VINIL REFORZADO \A1;CLIP DE SUJECION \A1;TORNILLO ELECTROGALVANIZADO #14 PUNTA DE BROCA Y LARGO DE 4" A 8" \A1;POLIN C DETALLE DE TRASLAPE DE LAMINAS Y UNION CON EL POLIN \A1;SIN ESCALA \A1;SIN ESCALA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, block, cover, dach, details, dimensions, drawing, DWG, hangar, insulated, lagerschuppen, laminated, outline, real, roof, shed, sheet, structure, terrasse, toit
